Complete Guide to ESD Testing Equipment for Electronics Manufacturing
Electrostatic discharge (ESD) can cause serious damage to sensitive electronic components in the manufacturing process. To protect your equipment and maintain compliance, it’s crucial to use the right ESD testing equipment. Regular testing and continuous monitoring of your ESD control systems help prevent costly damage. In this guide, we’ll introduce the best ESD testing tools and explain how they enhance workplace safety and ESD protection.
Why ESD Testing Equipment Is Essential for Electronics Manufacturing
In a high-risk environment like electronics manufacturing, ensuring the functionality of ESD protection devices is vital. ESD wrist straps, footwear, bench mats, and other protective equipment must be tested regularly to prevent static discharge damage. By using the right ESD testing tools, workers can quickly detect any faults in the system before they result in a static discharge event.
Top ESD Testing Equipment You Need for Effective ESD Control
Choosing the right combination of ESD testing equipment is essential for any electrostatic protected area (EPA). Below are some of the most commonly used ESD testing tools that ensure your workplace stays compliant with safety standards.
- ESD Wrist Strap Testers
ESD wrist straps are a primary component of ESD protection in EPAs. To ensure their effectiveness, ESD wrist strap testers are critical. A Portable ESD Wrist Strap Tester allows real-time functionality testing wherever staff are working.
For fixed testing, a Wrist Strap Test Station is ideal. It checks the continuity of wrist straps and cords, ensuring every employee is tested before entering the EPA.
For continuous monitoring, consider the Earth 4 Sure Monitor, which can be installed on workbenches to keep track of the wearer’s connection to the ground, providing constant ESD protection.
- ESD Footwear Testers

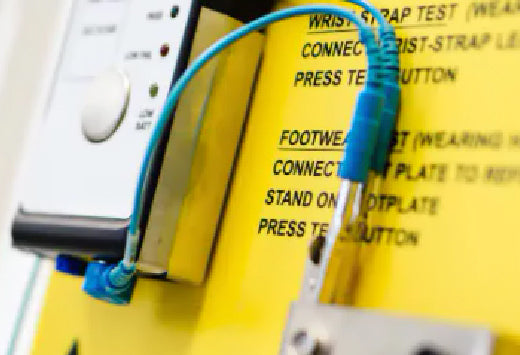

ESD footwear such as ESD shoes and heel straps must also be tested regularly. To simplify testing, combined footwear and wrist strap testers are available. Footwear/Wrist Strap Test Stations enable testing of both ESD wrist straps and footwear in one device, improving efficiency.
A Dual Footwear and Wrist Strap Tester allows for simultaneous testing of both protection devices, maximizing testing efficiency.
- Surface Resistivity Meters
Surface resistivity is crucial for ensuring your ESD protection surfaces meet compliance standards. Surface resistivity meters measure the resistance of work surfaces like anti-static mats. For surfaces to meet ESD standards, their resistance should fall within 10^(8) ohms.
Our Surface Resistivity Meter is designed to test both point-to-point and surface resistance, ensuring your workspace remains static dissipative. For more comprehensive testing, the Surface Resistivity Kit measures surface resistivity and resistance-to-ground, with added features like conductive foam disks, test leads, and more.
For areas requiring sensitive testing, the Resistance Test Kit is a versatile option that offers point-to-point resistance testing and measures bonding points to ground.
- Field Meters
A Field Meter is a portable device that accurately measures electrostatic fields in your workspace. As part of our Charge Plate Monitor Kit, it can be used to check the functionality of ESD tools and gloves, as well as air ionisers.
Field meters are essential for continuous monitoring and verifying the effectiveness of your ESD protective equipment.
- Constant Monitoring ESD Devices
Unlike traditional testing, which only checks ESD equipment at specific intervals, constant monitoring ensures that ESD protection devices are functioning correctly at all times. Continuous monitoring reduces the risk of undetected equipment failure.
Continuous Wrist Strap and Bench Monitors track wrist strap and workspace grounding at all times, alerting users of any disconnect through an LED warning system. This extra layer of protection ensures ESD-sensitive components remain safe.
For additional monitoring, the Constant Monitor can be fitted under workbenches to alert users when a wrist strap, mat, or grounding connection is compromised, with both visual and audible alarms.
How Often Should You Test ESD Protection Equipment?
Regular testing is key to maintaining effective ESD control. Failing to test ESD protection equipment can lead to equipment malfunction and costly damage. Many organizations test wrist straps and footwear daily or even before each shift to ensure they remain in proper working condition.
Integrating testing into your ESD Control Plan and training staff on proper testing procedures will ensure your team is well-equipped to protect sensitive electronics.
Choosing the Right ESD Testing Equipment for Your Workplace
The ESD testing equipment you need will depend on the types of protection devices you use in your EPA. At Grove Sales, we offer a wide range of ESD testers and monitoring tools that can be tailored to meet the needs of your business.
If you’re looking for ESD protection solutions or need advice on the best equipment for your facility, contact our expert team today. Call us at +44 (0)1202 588900 or email us at sales@grovesales.co.uk.
