Focus Digital Microscope 4K Ultra HD - FINE FOCUS BOOM STAND
Focus Digital Microscope 4K Ultra HD - COARSE STAND
Focus Digital Microscope 4K Ultra HD

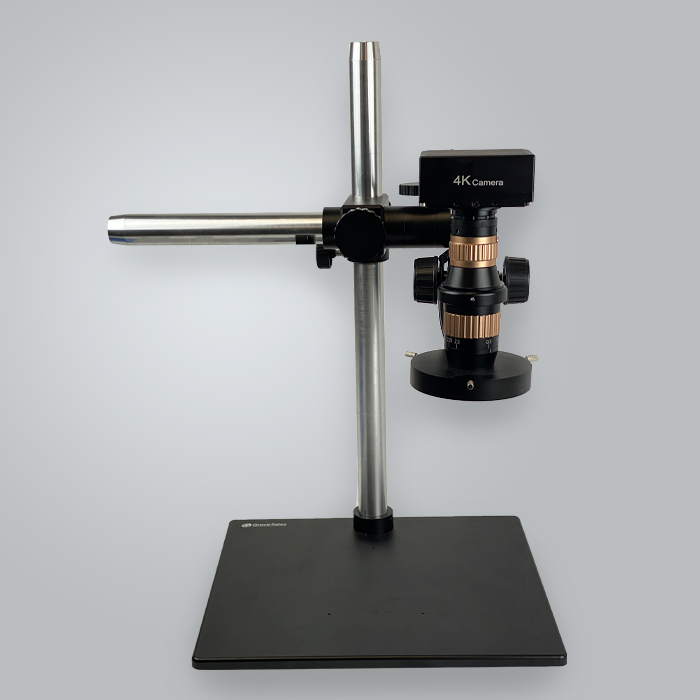

Fine Focus Stand
Coarse Stand

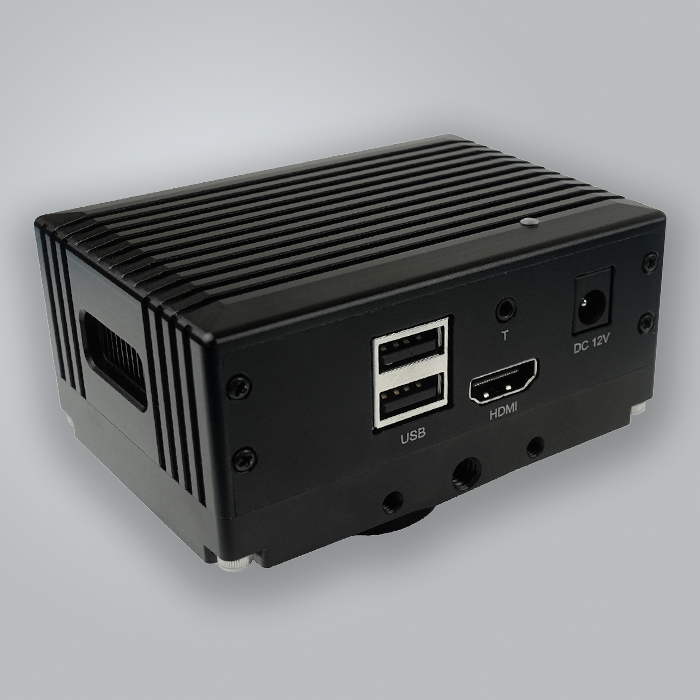

4K Ultra HD Camera
Selection Lenses 0.3X, 0.4X, 0.5X, 0.6X, 0.75X, 1.5X, 2.0X

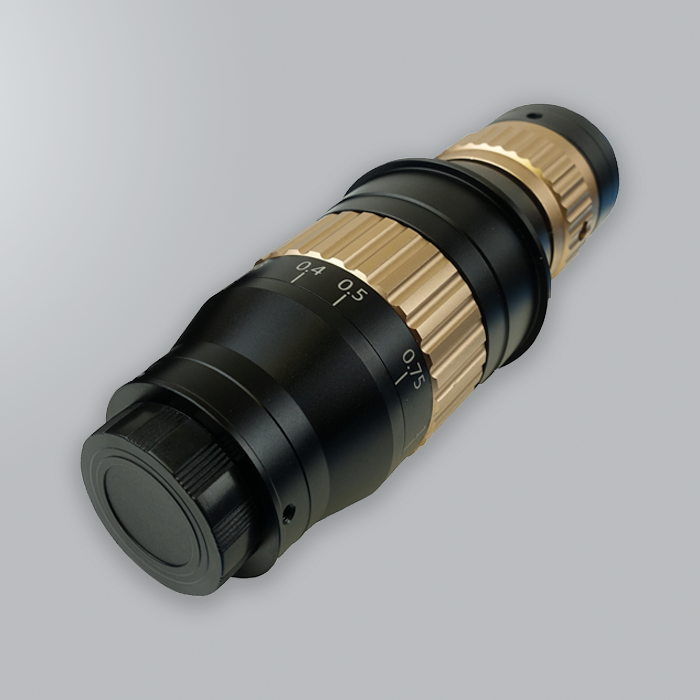

Lens
Light Ring and variable control

Focus Digital Microscope 4K Ultra HD

Unlock exceptional clarity and precision with the FOCUS 4K Digital Microscope.   Featuring a superior optical system and a 0.3-2.5x zoom with a 1:8.3 large ratio, this microscope delivers ultra-H
READ MORE
DOWNLOAD INFORMATION DATASHEETS

1. Information Sheet

Stock Item Select SKU Price Qty Total
1 4K HD Kit (Including Fine Focussing Boom Stand) 507-680 £1,490.00
Ex. VAT 		£0.00
Ex. VAT
0 4K HD Kit (Including Coarse Focussing Stand) 507-680-1 £1,460.00
Ex. VAT 		£0.00
Ex. VAT
13 0.3X Lens 507-681 £52.00
Ex. VAT 		£0.00
Ex. VAT
10 0.4X Lens 507-680-0.4X £52.00
Ex. VAT 		£0.00
Ex. VAT
2 0.5X Lens 507-682 £52.00
Ex. VAT 		£0.00
Ex. VAT
7 0.6X Lens 507-680-0.6X £52.00
Ex. VAT 		£0.00
Ex. VAT
13 0.75X Lens 507-683 £52.00
Ex. VAT 		£0.00
Ex. VAT
0 1.5X Lens 507-684 £52.00
Ex. VAT 		£0.00
Ex. VAT
0 2.0X Lens 507-685 £52.00
Ex. VAT 		£0.00
Ex. VAT
Pickup available at Grove Sales Ltd

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

Focus Digital Microscope 4K Ultra HD

£1,490.00
Focus Digital Microscope 4K Ultra HD

4K HD Kit (Including Fine Focussing Boom Stand)

  • Grove Sales Ltd

    Pickup available, call to arrange a suitable date and time

    Unit 3 Beaver Industrial Estate, 8 Airfield Road
    Christchurch BH23 3TG
    United Kingdom

    +441202588900
Focus Digital Microscope 4K Ultra HD - FINE FOCUS BOOM STAND
Focus Digital Microscope 4K Ultra HD - COARSE STAND
Focus Digital Microscope 4K Ultra HD
Fine Focus Stand
Coarse Stand
4K Ultra HD Camera
Selection Lenses 0.3X, 0.4X, 0.5X, 0.6X, 0.75X, 1.5X, 2.0X
Lens
Light Ring and variable control

Unlock exceptional clarity and precision with the FOCUS 4K Digital Microscope.



Featuring a superior optical system and a 0.3-2.5x zoom with a 1:8.3 large ratio, this microscope delivers ultra-HD imaging with a wide field of view.

Perfect for various applications, it offers a versatile 86mm working distance and high-quality imaging, powered by a 4K industrial camera and an 8MP CMOS sensor.

Whether for industrial inspection, research, or quality control, the FOCUS 4K ensures highly detailed and accurate results.





Product Specifications

Model FOCUS 4K
Optical Magnification 0.3-2.5X, 1:8.3 ratio
FOV 23.68*13.32-2.84*1.60mm
Working Distance 86mm
Total Magnification 14-120X (based on 15.6 inch monitor)
Resolution 3840*2160
Pixel Size 1.85 μm
Pixel 8.0MP
Optical Size 1/2"
Colour Depth 12:12:12 RGB
Frame 30 fps
Colour Adjust Manual/Auto
Luminance Adjust Manual/Auto
Photo Storage Mode U Disk Storage
Measurement Function Circle, sector, line, line spacing, arbitrary polygon, etc.
Output HDMI
Light Source LED ring light with 4 zones control
Stand Standard coarse track stand, 330*300mm base size, 105mm travel distance
Monitor Needs 3840*2160 HDMI 4K monitor



Auxiliary Objectives

Objective Working Distance Magnification FOV/mm
0.3X 270mm 0.09-0.75X 78.9*44.4-9.5*5.3
0.5X 160mm 0.15-1.25X 47.4*26.6-5.7*3.2
0.6X 130mm 0.18-1.5X 39.5*22.2-4.7*2.7
1.5X 50mm 0.45-3.75X 15.8*8.9-1.9*1.1
2.0X 39mm 0.6-5.0X 11.8*6.7-1.4*0.8



  • Ultra-HD 4K Imaging: 3840x2160 resolution for crisp, detailed visuals.
  • 0.3-2.5x Zoom: Achieve up to 1:8.3 magnification ratio for diverse applications.
  • Advanced Illumination: 208 LEDs with four-zone control for adjustable brightness.
  • Versatile Stand Options: Coarse focus post stand, track stand, fine focusing stand, and transmitted light stand.
  • Precise Measurements: Includes circle, sector, line, line spacing, and polygon measurement tools.
  • USB Capture: Direct image capture to USB for easy storage and analysis.

Product Inquiry

For more information about this product, please get in touch. Simply fill out the form, specify the system you’re interested in, and a member of the team will get back to you.
