Tuyau d'extraction V200 et V250 - Kits d'installation 50 mm

Authorised UK Distributor

SKU: 503-443

Description

Tuyau d'extraction BOFA 50 mm - Kits d'installation complets et pièces.

Ces kits contiennent tout ce dont vous avez besoin pour fixer votre /vos unité(s) d'extraction simple BOFA V200 ou double BOFA V250 à votre bureau, avec des pièces supplémentaires qui peuvent être achetées individuellement selon vos besoins.

Le kit V250 est essentiellement composé de 2 kits V200 comme illustré.

Features
  • Complete installation kits for BOFA V200 and V250 extraction units
  • Designed for 50mm hose connections to your desktop
  • Includes all necessary parts for a seamless installation
  • Additional parts available for individual purchase as needed
  • Ensures efficient and reliable fume extraction system setup
DOWNLOAD DATASHEETS

BUY 3+\u003e5 SAVE 3+\u003e5%

Stock Sélectionner SKU 1-2 3+\u003e5 Qty Total

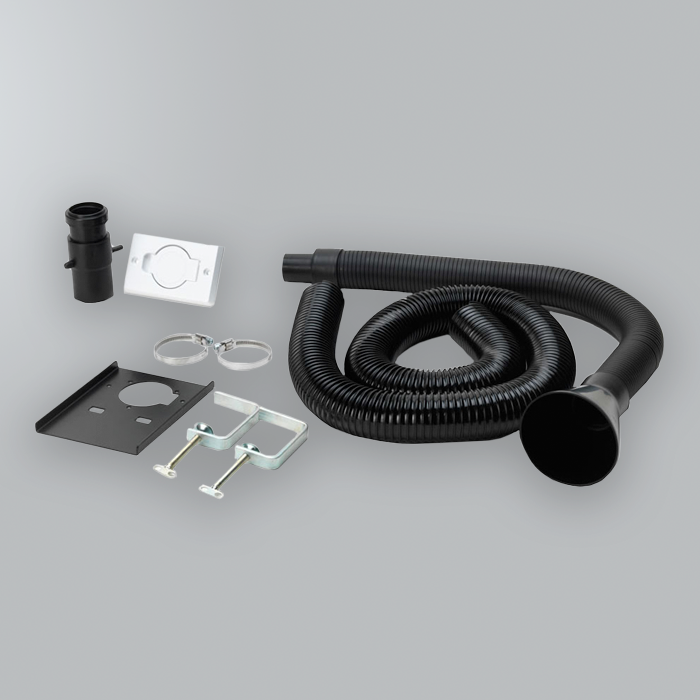

0 Kit d'installation complet V200 - A1020024 503-443 £151.47
Ex. VAT
£151.47
Ex. VAT
£0.00
Ex. VAT
0 Vanne d'équilibrage et d'étanchéité de chasse d'eau 50 mm - A1020052 503-473 £65.34
Ex. VAT
£65.34
Ex. VAT
£0.00
Ex. VAT

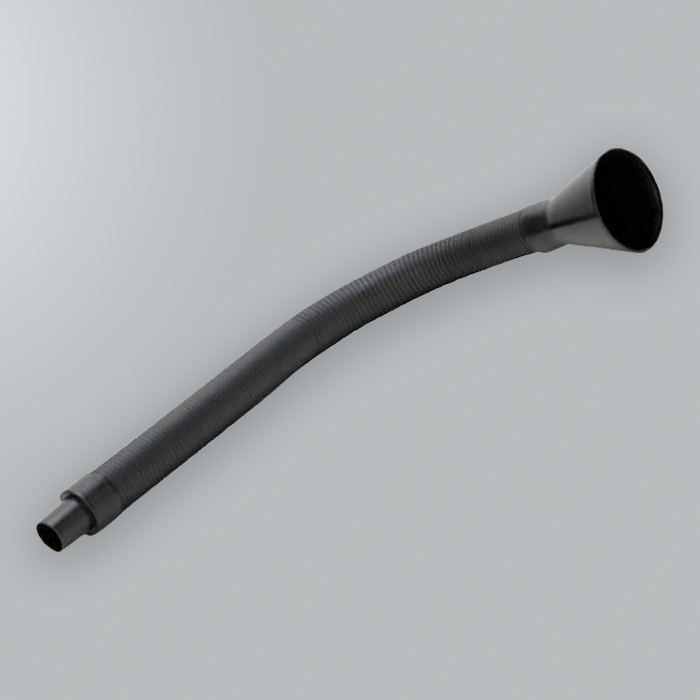

0 Bras de maintien de 50 mm - A1020045 503-471A £74.25
Ex. VAT
£74.25
Ex. VAT
£0.00
Ex. VAT

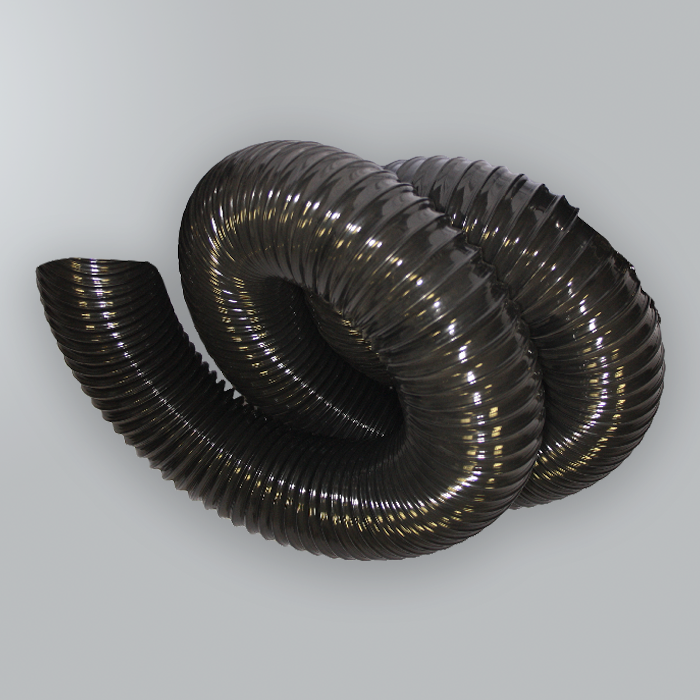

0 Tuyau flexible 50 mm/mètre - A1080007 503-462 £32.67
Ex. VAT
£32.67
Ex. VAT
£0.00
Ex. VAT

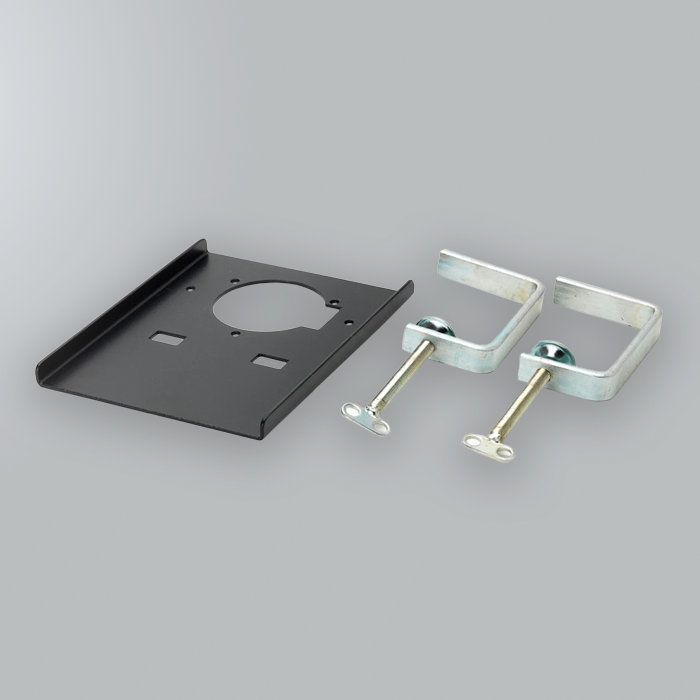

1 Support de table 50 mm + 2 pinces - A1020051 503-561 £27.54
Ex. VAT
£27.54
Ex. VAT
£0.00
Ex. VAT

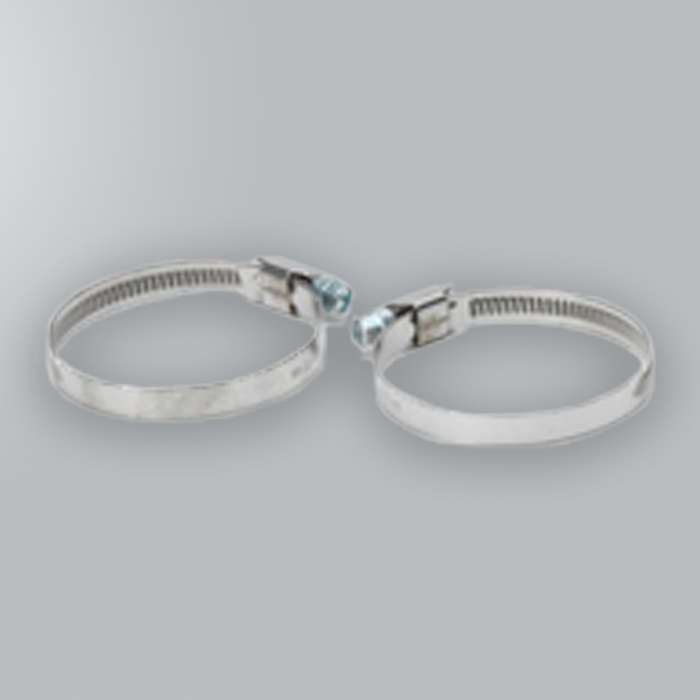

3 Lot de 2 pinces Jubilee 50 mm - A1080008 503-675 £12.87
Ex. VAT
£12.87
Ex. VAT
£0.00
Ex. VAT
0 Kit d'installation complet V250 - A1020025 503-532 £303.94
Ex. VAT
£303.94
Ex. VAT
£0.00
Ex. VAT

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your back-ordered item/s will be delivered.

YOU MAY ALSO LIKE

Frequently asked questions

Which BOFA extractor do I need for hand soldering?

For irons with tip extraction, the T15 serves up to 15 operators. For arms over the bench, the V200 covers one operator and the V250 two. Larger lines use the V600, V Oracle iQ or V 1000 iQ.

What is the difference between tip extraction and arm extraction?

Tip extraction draws fume through a tube on the iron, millimetres from the joint. Arm extraction uses a flexible arm and nozzle over the work. Both capture at source, which COSHH requires; a window does not.

How often should I change BOFA filters?

There is no set interval, because life depends on what and how much you extract. Change the pre-filter when the filter indicator calls for it and the combined HEPA/gas filter when the indicator or iQ display reports it. A fresh pre-filter protects the main filter.

What is a combined HEPA/gas filter?

One cartridge with two stages: a pleated glass-fibre HEPA section removing 99.97% of particles at 0.3 microns, and a treated activated-carbon section that absorbs gases and vapours. Laser and FumeCAB 1000 iQ versions reach 99.997%.

What is a DeepPleat DUO pre-filter?

BOFA's high-capacity pre-filter, with a large pleated media area that captures the bulk of particulate before the main filter, extending its life and keeping airflow up.

Which BOFA unit is right for a laser engraver?

Light use: AD Access or AD 350. Light to medium industrial: AD Nano. Industrial: AD Oracle iQ or SA iQ. Heavy duty: AD 500, 1000, 1500 or 2000 iQ. For a desktop laser the AD Base 1 or 2 doubles as the workstation.

Can I laser-cut PVC with a normal extractor?

No. PVC produces corrosive fume. BOFA's AD PVC iQ has coated internal surfaces and HCl and VOC sensors for exactly this job.

What does iQ mean on a BOFA unit?

BOFA's Intelligent Operating System: real-time performance information for the operator, downloadable data for evaluation, accurate filter alerts and, on larger units, airflow held steady as filters fill.

Are BOFA extractors noisy?

They are built for the bench. The T15 and V600 have built-in silencing, and the AD Oracle SA iQ is rated at 60 dBA. Noise figures are on each product page.

Does Grove Sales do LEV testing?

Yes. We provide LEV examination and testing on all BOFA equipment to keep your extraction compliant with COSHH, which requires testing at least every 14 months.

Is Grove Sales an authorised Donaldson BOFA distributor?

Yes. We stock the full range, including genuine replacement filters and spares, from our base in Christchurch, Dorset.

What arm sizes and ends are available?

ESD stay-put arms in 32, 50 and 75 mm, unit-mounted or bench-bracket, 1 m or 1.4 m, with nozzle, funnel, slot or plenum ends and an LED-lit option.

About Donaldson BOFA

Authorised UK Distributor

BOFA designs and builds fume and dust extraction systems in Dorset, now part of the Donaldson filtration group. Its portable and bench-mounted units protect operators in soldering, laser, 3D printing and dental applications.
