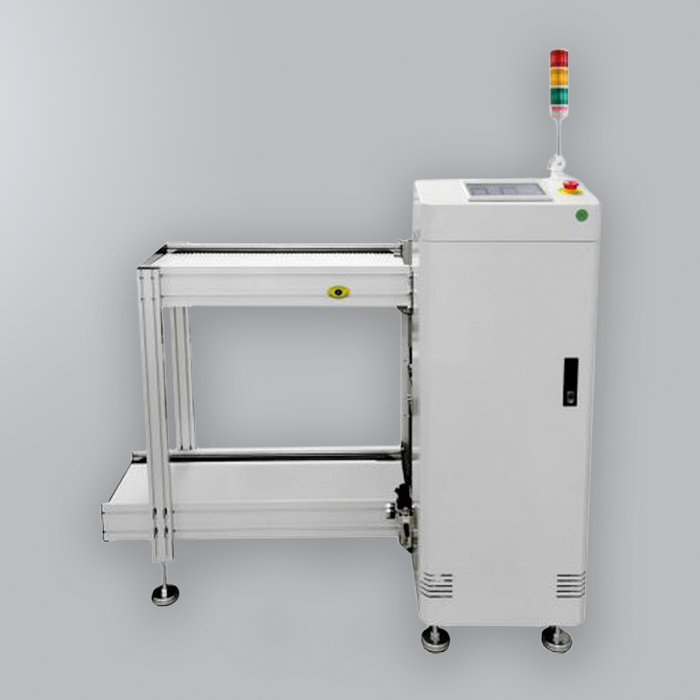

Auto PCB Board Loader

SKU:

601-630

The Auto PCB Board Loader is a highly efficient solution for automated PCB loading in production lines.   Designed for easy operation with a Touch Screen Controller, it features a Panasonic PLC co
READ MORE

NON STOCKED ITEM: As prices change frequently, please contact our Sales Team on 01202 588900 for up to date pricing and availability.

YOU MAY ALSO LIKE
ESD 2 Layer Bench Matting 1200mm x 10M Roll
ESD 2 Layer Bench Matting 1200mm x 10M Roll £248.00 Ex. VAT
Total: £0.00 Ex. VAT

Auto PCB Board Loader

£0.00
Auto PCB Board Loader

The Auto PCB Board Loader is a highly efficient solution for automated PCB loading in production lines.



Designed for easy operation with a Touch Screen Controller, it features a Panasonic PLC control system for precise control and reliability.

This machine ensures smooth PCB transmission with its pneumatic clamps and gas circuit design, enhancing productivity while maintaining board security.

The adjustable speed control function and automatic fault diagnosis make it a versatile and user-friendly addition to any PCB manufacturing process.

  • Dimensions: 1650 x 845 x 1250mm (LxWxH)
  • Max Board Size: 445 x 330mm
  • Min Board Size: 50 x 50mm
  • Touch Screen Controller: Simple and intuitive operation
  • Panasonic PLC Control System: Reliable and accurate control
  • Pneumatic Clamps: Top and bottom clamps to secure magazine racks
  • Gas Circuit Design: Smooth and stable PCB transmission
  • Adjustable Speed Control: Customisable feeding speed
  • Fault Diagnosis System: Automatic fault code display for quick troubleshooting
  • Magazine Loading Capacity: Holds up to 3 magazines simultaneously
