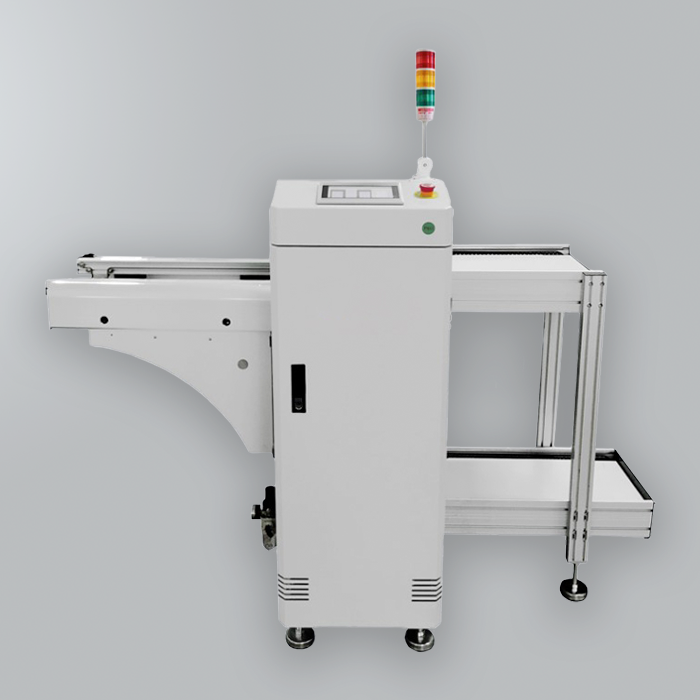

Auto PCB Board Unloader

Grove Sales own brand

SKU: 601-631

At a glance

What it is
An automatic PCB unloader that collects finished boards from an SMT line into a magazine rack.
Best for
The end of an automated assembly line.
Key facts
Boards 50 x 50 mm to 445 x 330 mm; 2065 x 845 x 1250 mm; touch screen; Panasonic PLC; pneumatic clamps hold the magazine rack.
Description

The Auto PCB Board Unloader is designed to streamline PCB unloading in production lines, ensuring efficiency and accuracy.



With an intuitive Touch Screen Controller and a Panasonic PLC control system, this machine delivers precise control and stable operation.

Its top and bottom pneumatic clamps securely hold the magazine racks, while the gas circuit design ensures smooth PCB transmission.

The adjustable speed control and automatic fault diagnosis further enhance its reliability, making it an essential addition to any PCB manufacturing setup.

Product Features
  • Dimensions: 2065 x 845 x 1250mm (LxWxH)
  • Max Board Size: 445 x 330mm
  • Min Board Size: 50 x 50mm
  • Touch Screen Controller: Easy operation for operators
  • Panasonic PLC Control System: Reliable and accurate control
  • Pneumatic Clamps: Secure top and bottom magazine racks
  • Gas Circuit Design: Smooth and stable PCB transmission
  • Adjustable Speed Control: Customisable unloading speed
  • Fault Diagnosis System: Automatic fault code display for quick troubleshooting
  • Magazine Loading Capacity: Supports up to 3 magazines
DOWNLOAD DATASHEETS
Price on Application
