AD 1000 iQ Powder Coated 230V

Authorised UK Distributor

SKU: 503-319

MPN: 1U30811503-A-1419

At a glance

What it is
A heavy-duty Donaldson BOFA laser fume extractor with the iQ operating system, powder coated, 230 V.
Best for
Heavy-duty laser marking, coding and engraving.
Key facts
Airflow 875 m³/hr (+/- 10%); large filter capacity; under 85 dBA maximum; full load current 12.5 A.

Description

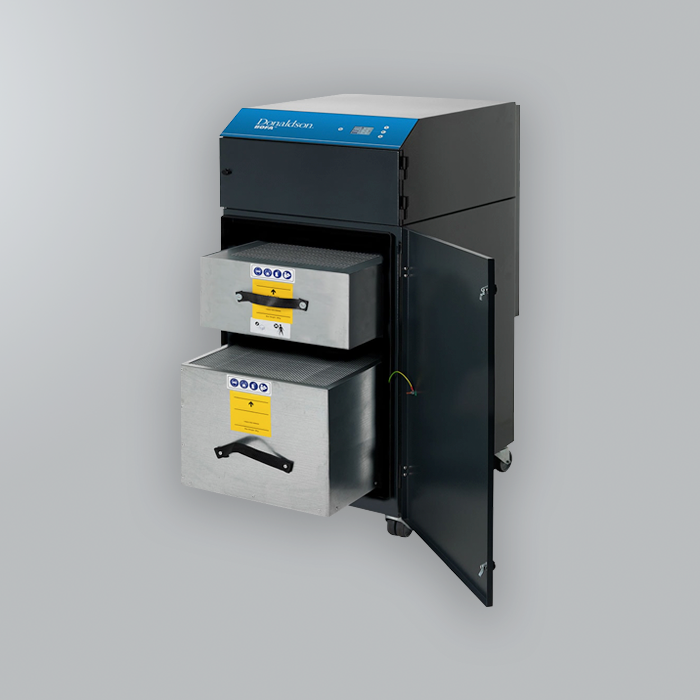

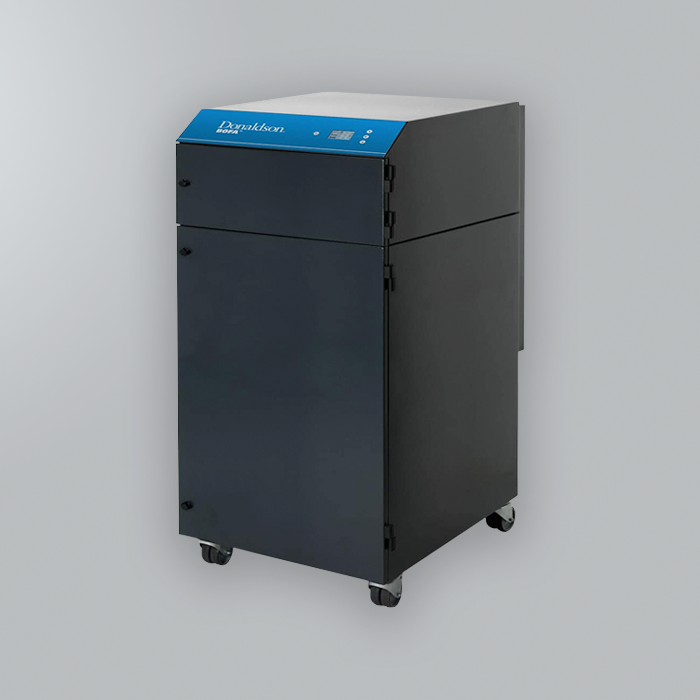

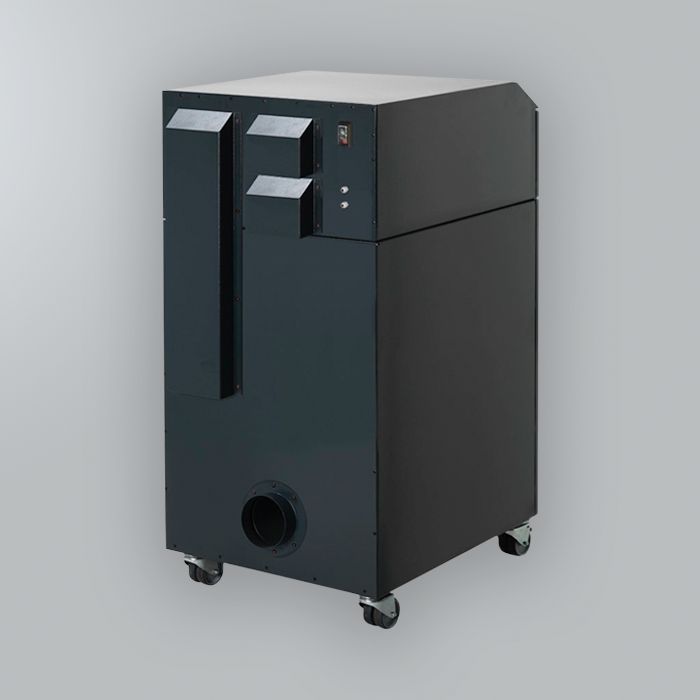

The Donaldson BOFA AD 1000 iQ is designed for heavy-duty applications in laser marking, coding, and engraving, offering high airflow and pressure rates with a large filter capacity.



Its advanced features, including BOFA's patented Intelligent Operating System (iQ), make it the ideal choice for applications generating significant particulate and gaseous organic compounds.



Compatible with:

    Features

    • High airflow capacity (875m³/hr +/- 10%) for optimal fume extraction in demanding environments
    • Patented Intelligent Operating System (iQ) for enhanced performance and reliability
    • Powder-coated mild steel construction for durability
    • Low noise level (< 85dBA max) for quieter operation, even during high-performance tasks
    • Voltage: 230V, 50/60Hz, Full load current: 12.5 amps
    • Dimensions: 1205 x 615 x 790 mm, suitable for industrial settings
    • Weighs 147kg, providing robust and stable extraction in high-duty applications

    Download datasheets

    SKU: 503-319

    Prices Ex. VAT

    BUY 3+ SAVE 5%

    Stock SKU 1-2 3+ Qty Total
    0 503-319 £4,255.39
    Ex. VAT
    £4,042.62
    Ex. VAT
    £0.00
    Ex. VAT
    Choose the quantity in the table
    Your total shows here as you go.
    0 IN STOCK

    If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your back-ordered item/s will be delivered.

    LEV Testing

    SEE HERE for details of how we can help with LEV (Local Exhaust Ventilation) testing.

    Frequently asked questions

    Which BOFA extractor do I need for hand soldering?

    For irons with tip extraction, the T15 serves up to 15 operators. For arms over the bench, the V200 covers one operator and the V250 two. Larger lines use the V600, V Oracle iQ or V 1000 iQ.

    What is the difference between tip extraction and arm extraction?

    Tip extraction draws fume through a tube on the iron, millimetres from the joint. Arm extraction uses a flexible arm and nozzle over the work. Both capture at source, which COSHH requires; a window does not.

    How often should I change BOFA filters?

    There is no set interval, because life depends on what and how much you extract. Change the pre-filter when the filter indicator calls for it and the combined HEPA/gas filter when the indicator or iQ display reports it. A fresh pre-filter protects the main filter.

    What is a combined HEPA/gas filter?

    One cartridge with two stages: a pleated glass-fibre HEPA section removing 99.97% of particles at 0.3 microns, and a treated activated-carbon section that absorbs gases and vapours. Laser and FumeCAB 1000 iQ versions reach 99.997%.

    What is a DeepPleat DUO pre-filter?

    BOFA's high-capacity pre-filter, with a large pleated media area that captures the bulk of particulate before the main filter, extending its life and keeping airflow up.

    Which BOFA unit is right for a laser engraver?

    Light use: AD Access or AD 350. Light to medium industrial: AD Nano. Industrial: AD Oracle iQ or SA iQ. Heavy duty: AD 500, 1000, 1500 or 2000 iQ. For a desktop laser the AD Base 1 or 2 doubles as the workstation.

    Can I laser-cut PVC with a normal extractor?

    No. PVC produces corrosive fume. BOFA's AD PVC iQ has coated internal surfaces and HCl and VOC sensors for exactly this job.

    What does iQ mean on a BOFA unit?

    BOFA's Intelligent Operating System: real-time performance information for the operator, downloadable data for evaluation, accurate filter alerts and, on larger units, airflow held steady as filters fill.

    Are BOFA extractors noisy?

    They are built for the bench. The T15 and V600 have built-in silencing, and the AD Oracle SA iQ is rated at 60 dBA. Noise figures are on each product page.

    Does Grove Sales do LEV testing?

    Yes. We provide LEV examination and testing on all BOFA equipment to keep your extraction compliant with COSHH, which requires testing at least every 14 months.

    Is Grove Sales an authorised Donaldson BOFA distributor?

    Yes. We stock the full range, including genuine replacement filters and spares, from our base in Christchurch, Dorset.

    What arm sizes and ends are available?

    ESD stay-put arms in 32, 50 and 75 mm, unit-mounted or bench-bracket, 1 m or 1.4 m, with nozzle, funnel, slot or plenum ends and an LED-lit option.

    About Donaldson BOFA

    Authorised UK Distributor

    BOFA designs and builds fume and dust extraction systems in Dorset, now part of the Donaldson filtration group. Its portable and bench-mounted units protect operators in soldering, laser, 3D printing and dental applications.
