At a glance

What it is
A Donaldson BOFA laser fume extractor that doubles as a stand: the laser engraver sits on top.
Best for
Laser engravers where floor space is tight.
Key facts
Auto-sensing 115 to 230 V; reverse flow filter technology; DeepPleat DUO pre-filter; automatic flow control.

Description

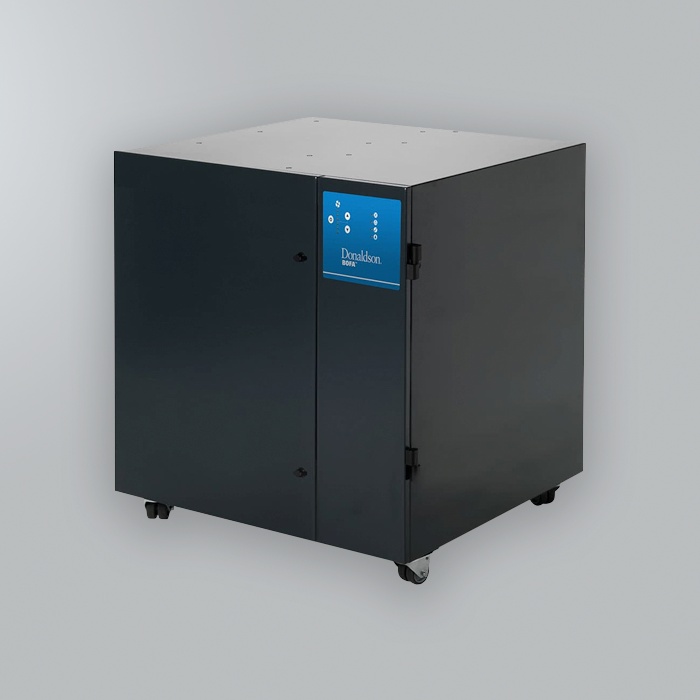

The Donaldson BOFA AD Base 1 Oracle is a ‘two-in-one’ fume extraction system that not only provides powerful filtration but also doubles as a workstation by allowing laser engravers to sit securely on top.



Designed to accommodate a variety of manufacturer’s laser engravers, this unit delivers an effective extraction solution while maximising workspace.

Featuring BOFA's auto-voltage sensing turbine, the unit adjusts to any voltage worldwide, while the reverse flow filter technology and automatic flow control ensure optimal performance, lower noise, and longer filter life.

With the option for an onboard compressor and easy filter changes, the AD Base 1 Oracle provides convenience and high performance.



Compatible with:

Features

  • Dual functionality: serves as both a fume extractor and a workstation for laser engravers
  • Auto-voltage sensing turbine adjusts to any voltage worldwide (115V-230V)
  • Reverse flow filter technology for enhanced filtration and extended filter life
  • Patented DeepPleat DUO pre-filter for superior filtration
  • Automatic flow control for preset flow rates, lower noise levels, and increased filter protection
  • Option for onboard compressor for compact, space-saving installation
  • BOFA’s ‘easi-seal’ filter location for quick and easy filter changes
  • Low noise level (< 64 dBA) for quieter operation in the workspace
  • Powder-coated mild steel construction for durability and longevity
  • Airflow of 380m³/hr and pressure of 96mbar (223 CFM / 96 mbar) for optimal fume extraction
  • Compact size (790 x 735 x 740 mm) for efficient use of space
  • Weighs 86kg for stability and reliability in demanding environments

Download datasheets

SKU: 503-328

Prices Ex. VAT

BUY 3+ SAVE 5%

Stock SKU 1-2 3+ Qty Total
0 503-328 £2,001.33
Ex. VAT
£1,901.26
Ex. VAT
£0.00
Ex. VAT
Choose the quantity in the table
Your total shows here as you go.
0 IN STOCK

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your back-ordered item/s will be delivered.

LEV Testing

SEE HERE for details of how we can help with LEV (Local Exhaust Ventilation) testing.

Frequently asked questions

Which BOFA extractor do I need for hand soldering?

For irons with tip extraction, the T15 serves up to 15 operators. For arms over the bench, the V200 covers one operator and the V250 two. Larger lines use the V600, V Oracle iQ or V 1000 iQ.

What is the difference between tip extraction and arm extraction?

Tip extraction draws fume through a tube on the iron, millimetres from the joint. Arm extraction uses a flexible arm and nozzle over the work. Both capture at source, which COSHH requires; a window does not.

How often should I change BOFA filters?

There is no set interval, because life depends on what and how much you extract. Change the pre-filter when the filter indicator calls for it and the combined HEPA/gas filter when the indicator or iQ display reports it. A fresh pre-filter protects the main filter.

What is a combined HEPA/gas filter?

One cartridge with two stages: a pleated glass-fibre HEPA section removing 99.97% of particles at 0.3 microns, and a treated activated-carbon section that absorbs gases and vapours. Laser and FumeCAB 1000 iQ versions reach 99.997%.

What is a DeepPleat DUO pre-filter?

BOFA's high-capacity pre-filter, with a large pleated media area that captures the bulk of particulate before the main filter, extending its life and keeping airflow up.

Which BOFA unit is right for a laser engraver?

Light use: AD Access or AD 350. Light to medium industrial: AD Nano. Industrial: AD Oracle iQ or SA iQ. Heavy duty: AD 500, 1000, 1500 or 2000 iQ. For a desktop laser the AD Base 1 or 2 doubles as the workstation.

Can I laser-cut PVC with a normal extractor?

No. PVC produces corrosive fume. BOFA's AD PVC iQ has coated internal surfaces and HCl and VOC sensors for exactly this job.

What does iQ mean on a BOFA unit?

BOFA's Intelligent Operating System: real-time performance information for the operator, downloadable data for evaluation, accurate filter alerts and, on larger units, airflow held steady as filters fill.

Are BOFA extractors noisy?

They are built for the bench. The T15 and V600 have built-in silencing, and the AD Oracle SA iQ is rated at 60 dBA. Noise figures are on each product page.

Does Grove Sales do LEV testing?

Yes. We provide LEV examination and testing on all BOFA equipment to keep your extraction compliant with COSHH, which requires testing at least every 14 months.

Is Grove Sales an authorised Donaldson BOFA distributor?

Yes. We stock the full range, including genuine replacement filters and spares, from our base in Christchurch, Dorset.

What arm sizes and ends are available?

ESD stay-put arms in 32, 50 and 75 mm, unit-mounted or bench-bracket, 1 m or 1.4 m, with nozzle, funnel, slot or plenum ends and an LED-lit option.
