AD Nano Stainless Steel 230V

Authorised UK Distributor

SKU: 503-305

MPN: 1U30106519-1313

At a glance

What it is

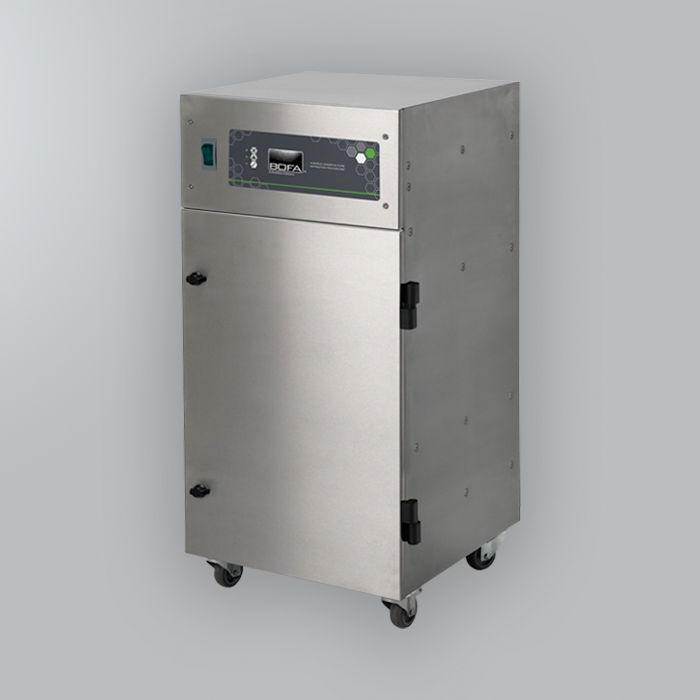

A compact Donaldson BOFA laser fume extractor, in brushed stainless steel, 230 V.
Best for
Light to medium laser coding in small-scale industrial settings.
Key facts
Reverse flow air and DeepPleat DUO filter technology; under 60 dBA; 790 x 360 x 420 mm; 1.1 A.

Description

The Donaldson BOFA AD Nano is the perfect fume extraction system for small-scale industrial environments and light to medium laser coding applications.



Featuring advanced reverse flow air technology and DeepPleat DUO filter technology, it offers superior filtration performance and long filter life.

With a brushed stainless steel construction, low noise level, and a filter condition indicator, the AD Nano provides a reliable and efficient solution for maintaining clean air in compact spaces.



Compatible with:

    Features

    • Compact design (790 x 360 x 420 mm) for easy installation in limited spaces
    • Brushed stainless steel construction for durability and aesthetic appeal
    • Reverse flow air and DeepPleat DUO filter technology for enhanced filtration efficiency and longer filter life
    • Low noise operation (< 60 dBA) for a quieter working environment
    • Voltage: 230V, Frequency: 50/60Hz, Full load current: 1.1 amps
    • Airflow of 170m³/hr and pressure of 30mbar for optimal fume extraction
    • Filter condition indicator for easy monitoring of filter status
    • Weighs 40kg for easy mobility and installation

    Download datasheets

    SKU: 503-305

    Prices Ex. VAT

    BUY 3+ SAVE 5%

    Stock SKU 1-2 3+ Qty Total
    0 503-305 £1,351.41
    Ex. VAT
    £1,283.84
    Ex. VAT
    £0.00
    Ex. VAT
    Choose the quantity in the table
    Your total shows here as you go.
    0 IN STOCK

    If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your back-ordered item/s will be delivered.

    LEV Testing

    SEE HERE for details of how we can help with LEV (Local Exhaust Ventilation) testing.

    Frequently asked questions

    Which BOFA extractor do I need for hand soldering?

    For irons with tip extraction, the T15 serves up to 15 operators. For arms over the bench, the V200 covers one operator and the V250 two. Larger lines use the V600, V Oracle iQ or V 1000 iQ.

    What is the difference between tip extraction and arm extraction?

    Tip extraction draws fume through a tube on the iron, millimetres from the joint. Arm extraction uses a flexible arm and nozzle over the work. Both capture at source, which COSHH requires; a window does not.

    How often should I change BOFA filters?

    There is no set interval, because life depends on what and how much you extract. Change the pre-filter when the filter indicator calls for it and the combined HEPA/gas filter when the indicator or iQ display reports it. A fresh pre-filter protects the main filter.

    What is a combined HEPA/gas filter?

    One cartridge with two stages: a pleated glass-fibre HEPA section removing 99.97% of particles at 0.3 microns, and a treated activated-carbon section that absorbs gases and vapours. Laser and FumeCAB 1000 iQ versions reach 99.997%.

    What is a DeepPleat DUO pre-filter?

    BOFA's high-capacity pre-filter, with a large pleated media area that captures the bulk of particulate before the main filter, extending its life and keeping airflow up.

    Which BOFA unit is right for a laser engraver?

    Light use: AD Access or AD 350. Light to medium industrial: AD Nano. Industrial: AD Oracle iQ or SA iQ. Heavy duty: AD 500, 1000, 1500 or 2000 iQ. For a desktop laser the AD Base 1 or 2 doubles as the workstation.

    Can I laser-cut PVC with a normal extractor?

    No. PVC produces corrosive fume. BOFA's AD PVC iQ has coated internal surfaces and HCl and VOC sensors for exactly this job.

    What does iQ mean on a BOFA unit?

    BOFA's Intelligent Operating System: real-time performance information for the operator, downloadable data for evaluation, accurate filter alerts and, on larger units, airflow held steady as filters fill.

    Are BOFA extractors noisy?

    They are built for the bench. The T15 and V600 have built-in silencing, and the AD Oracle SA iQ is rated at 60 dBA. Noise figures are on each product page.

    Does Grove Sales do LEV testing?

    Yes. We provide LEV examination and testing on all BOFA equipment to keep your extraction compliant with COSHH, which requires testing at least every 14 months.

    Is Grove Sales an authorised Donaldson BOFA distributor?

    Yes. We stock the full range, including genuine replacement filters and spares, from our base in Christchurch, Dorset.

    What arm sizes and ends are available?

    ESD stay-put arms in 32, 50 and 75 mm, unit-mounted or bench-bracket, 1 m or 1.4 m, with nozzle, funnel, slot or plenum ends and an LED-lit option.

    About Donaldson BOFA

    Authorised UK Distributor

    BOFA designs and builds fume and dust extraction systems in Dorset, now part of the Donaldson filtration group. Its portable and bench-mounted units protect operators in soldering, laser, 3D printing and dental applications.
