AD PVC iQ

Authorised UK Distributor

SKU: 503-327

MPN: 1U67185430106026-1480

At a glance

What it is
A Donaldson BOFA fume extractor built for the corrosive fumes from lasering PVC.
Best for
Laser marking and cutting of PVC materials.
Key facts
Epoxy-coated internal surfaces; HCl and VOC sensors on the exhaust; iQ operating system; brushed stainless steel; under 60 dBA.

Description

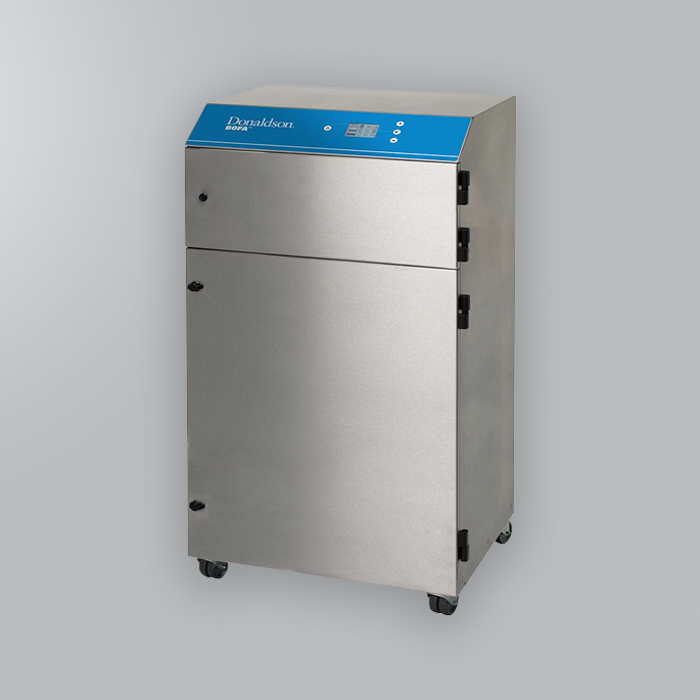

The Donaldson BOFA AD PVC iQ extraction system is specifically designed to address the corrosive fumes generated when lasering PVC materials.



This advanced system incorporates the best features of the AD Oracle iQ model, with an added focus on corrosion resistance.

All internally exposed surfaces are coated to withstand the harsh nature of PVC fumes. The AD PVC iQ is equipped with HCl and VOC sensors that continuously monitor the exhaust air, ensuring high performance and safety.

Constructed from brushed stainless steel with epoxy-coated internal parts, the system operates with a low noise level, making it suitable for various industrial environments.



Compatible with:

    Features

    • Specifically designed for the corrosive fumes from lasering PVC materials
    • Enhanced with BOFA’s Intelligent Operating System (iQ) and best-in-class features

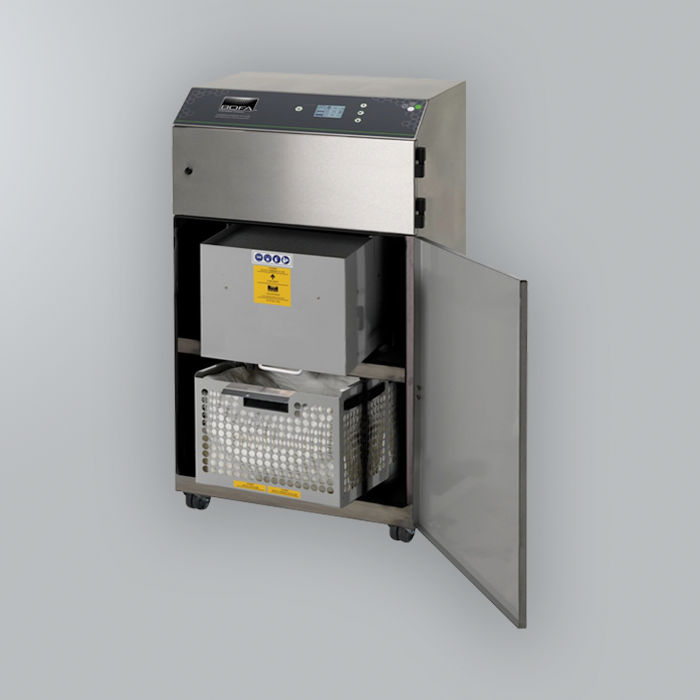

    • Corrosion-resistant internal surfaces with epoxy coating
    • HCl and VOC sensors to continuously monitor exhaust air quality
    • Brushed stainless steel construction for durability
    • Low noise level (<60dBA) for quieter operation
    • Voltage: 115V-230V, single-phase
    • Dimensions (HxWxD): 1090 x 570 x 600mm for efficient use of space
    • Airflow/Pressure: 350m3/hr (205cfm) / 96mbar for optimal extraction
    • Electrical data: 100-230V, 1~ 50/60Hz, full load current: 12.5 amps / 1.1kw
    • Weight: 95kg for a robust and portable solution

    Download datasheets

    SKU: 503-327

    Prices Ex. VAT

    BUY 3+ SAVE 5%

    Stock SKU 1-2 3+ Qty Total
    0 503-327 £3,837.34
    Ex. VAT
    £3,645.47
    Ex. VAT
    £0.00
    Ex. VAT
    Choose the quantity in the table
    Your total shows here as you go.
    0 IN STOCK

    If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your back-ordered item/s will be delivered.

    LEV Testing

    SEE HERE for details of how we can help with LEV (Local Exhaust Ventilation) testing.

    Frequently asked questions

    Which BOFA extractor do I need for hand soldering?

    For irons with tip extraction, the T15 serves up to 15 operators. For arms over the bench, the V200 covers one operator and the V250 two. Larger lines use the V600, V Oracle iQ or V 1000 iQ.

    What is the difference between tip extraction and arm extraction?

    Tip extraction draws fume through a tube on the iron, millimetres from the joint. Arm extraction uses a flexible arm and nozzle over the work. Both capture at source, which COSHH requires; a window does not.

    How often should I change BOFA filters?

    There is no set interval, because life depends on what and how much you extract. Change the pre-filter when the filter indicator calls for it and the combined HEPA/gas filter when the indicator or iQ display reports it. A fresh pre-filter protects the main filter.

    What is a combined HEPA/gas filter?

    One cartridge with two stages: a pleated glass-fibre HEPA section removing 99.97% of particles at 0.3 microns, and a treated activated-carbon section that absorbs gases and vapours. Laser and FumeCAB 1000 iQ versions reach 99.997%.

    What is a DeepPleat DUO pre-filter?

    BOFA's high-capacity pre-filter, with a large pleated media area that captures the bulk of particulate before the main filter, extending its life and keeping airflow up.

    Which BOFA unit is right for a laser engraver?

    Light use: AD Access or AD 350. Light to medium industrial: AD Nano. Industrial: AD Oracle iQ or SA iQ. Heavy duty: AD 500, 1000, 1500 or 2000 iQ. For a desktop laser the AD Base 1 or 2 doubles as the workstation.

    Can I laser-cut PVC with a normal extractor?

    No. PVC produces corrosive fume. BOFA's AD PVC iQ has coated internal surfaces and HCl and VOC sensors for exactly this job.

    What does iQ mean on a BOFA unit?

    BOFA's Intelligent Operating System: real-time performance information for the operator, downloadable data for evaluation, accurate filter alerts and, on larger units, airflow held steady as filters fill.

    Are BOFA extractors noisy?

    They are built for the bench. The T15 and V600 have built-in silencing, and the AD Oracle SA iQ is rated at 60 dBA. Noise figures are on each product page.

    Does Grove Sales do LEV testing?

    Yes. We provide LEV examination and testing on all BOFA equipment to keep your extraction compliant with COSHH, which requires testing at least every 14 months.

    Is Grove Sales an authorised Donaldson BOFA distributor?

    Yes. We stock the full range, including genuine replacement filters and spares, from our base in Christchurch, Dorset.

    What arm sizes and ends are available?

    ESD stay-put arms in 32, 50 and 75 mm, unit-mounted or bench-bracket, 1 m or 1.4 m, with nozzle, funnel, slot or plenum ends and an LED-lit option.

    About Donaldson BOFA

    Authorised UK Distributor

    BOFA designs and builds fume and dust extraction systems in Dorset, now part of the Donaldson filtration group. Its portable and bench-mounted units protect operators in soldering, laser, 3D printing and dental applications.
