Pre Filter DeepPleat DUO V1000 iQ

Authorised UK Distributor

SKU: 503-575

MPN: 1UA1030397

Description

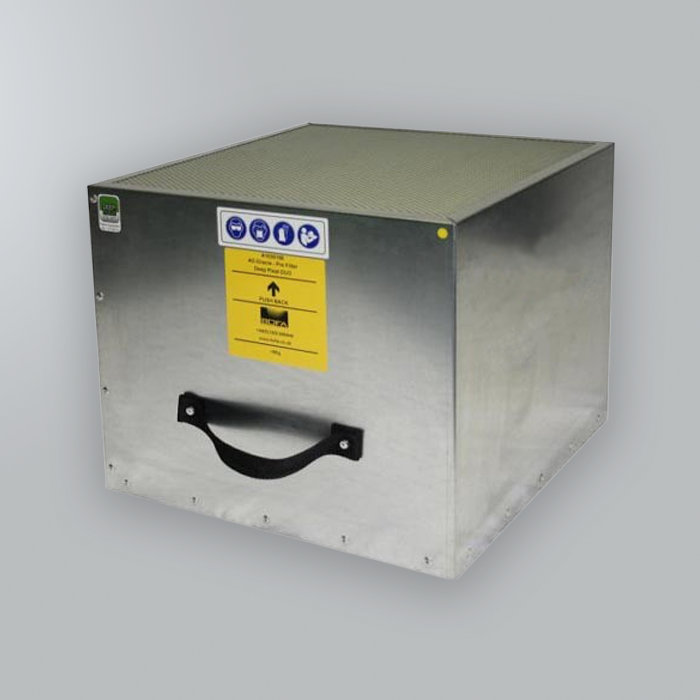

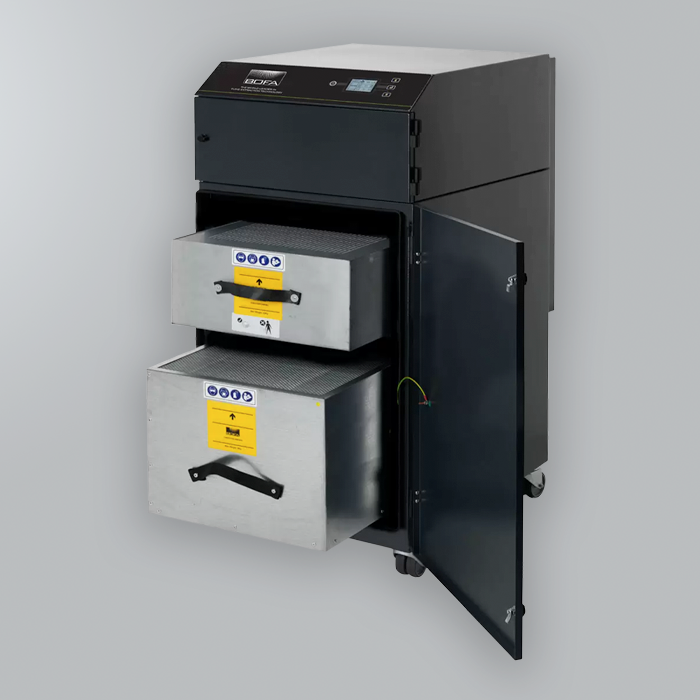

The BOFA A1030397 DeepPleat DUO Pre-Filter is a high-performance first stage filter designed specifically for the BOFA V1000 iQ fume extraction unit.


This pre-filter effectively captures larger particles, protecting the more expensive HEPA and gas filter (A1030398) from premature clogging, thus extending its lifespan.

With a generous surface media area of 30m², it ensures efficient particle retention and optimal airflow.

Featuring a large 58-litre dropout chamber and a 125mm inlet size, the A1030397 is an ideal choice for high-volume applications, offering cost-effective protection and enhancing overall system efficiency.



Compatible with:

Product Features
  • Prolongs filter life: Reduces the load on the HEPA/gas filter (A1030398), extending its service life
  • High surface area: 30m² of filter media for effective particle capture
  • Large pleat size: 200mm pleats for increased dirt-holding capacity
  • Inlet size: 125mm for compatibility with BOFA V1000 iQ units
  • Dropout chamber: 58-litre chamber for enhanced airflow and filtration efficiency
  • Cost-effective: Affordable solution that enhances filter longevity and system performance
LEV Testing

SEE HERE for details of how we can help with LEV (Local Exhaust Ventilation) testing.

DOWNLOAD DATASHEETS

PRICE PER ITEM

£420.76

Ex. VAT

Shipping calculated at checkout.

BUY 3+ GET 5% OFF

£399.72 Ex. VAT

0 IN STOCK

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your back-ordered item/s will be delivered.

YOU MAY ALSO LIKE

Frequently asked questions

Which BOFA extractor do I need for hand soldering?

For irons with tip extraction, the T15 serves up to 15 operators. For arms over the bench, the V200 covers one operator and the V250 two. Larger lines use the V600, V Oracle iQ or V 1000 iQ.

What is the difference between tip extraction and arm extraction?

Tip extraction draws fume through a tube on the iron, millimetres from the joint. Arm extraction uses a flexible arm and nozzle over the work. Both capture at source, which COSHH requires; a window does not.

How often should I change BOFA filters?

There is no set interval, because life depends on what and how much you extract. Change the pre-filter when the filter indicator calls for it and the combined HEPA/gas filter when the indicator or iQ display reports it. A fresh pre-filter protects the main filter.

What is a combined HEPA/gas filter?

One cartridge with two stages: a pleated glass-fibre HEPA section removing 99.97% of particles at 0.3 microns, and a treated activated-carbon section that absorbs gases and vapours. Laser and FumeCAB 1000 iQ versions reach 99.997%.

What is a DeepPleat DUO pre-filter?

BOFA's high-capacity pre-filter, with a large pleated media area that captures the bulk of particulate before the main filter, extending its life and keeping airflow up.

Which BOFA unit is right for a laser engraver?

Light use: AD Access or AD 350. Light to medium industrial: AD Nano. Industrial: AD Oracle iQ or SA iQ. Heavy duty: AD 500, 1000, 1500 or 2000 iQ. For a desktop laser the AD Base 1 or 2 doubles as the workstation.

Can I laser-cut PVC with a normal extractor?

No. PVC produces corrosive fume. BOFA's AD PVC iQ has coated internal surfaces and HCl and VOC sensors for exactly this job.

What does iQ mean on a BOFA unit?

BOFA's Intelligent Operating System: real-time performance information for the operator, downloadable data for evaluation, accurate filter alerts and, on larger units, airflow held steady as filters fill.

Are BOFA extractors noisy?

They are built for the bench. The T15 and V600 have built-in silencing, and the AD Oracle SA iQ is rated at 60 dBA. Noise figures are on each product page.

Does Grove Sales do LEV testing?

Yes. We provide LEV examination and testing on all BOFA equipment to keep your extraction compliant with COSHH, which requires testing at least every 14 months.

Is Grove Sales an authorised Donaldson BOFA distributor?

Yes. We stock the full range, including genuine replacement filters and spares, from our base in Christchurch, Dorset.

What arm sizes and ends are available?

ESD stay-put arms in 32, 50 and 75 mm, unit-mounted or bench-bracket, 1 m or 1.4 m, with nozzle, funnel, slot or plenum ends and an LED-lit option.

About Donaldson BOFA

Authorised UK Distributor

BOFA designs and builds fume and dust extraction systems in Dorset, now part of the Donaldson filtration group. Its portable and bench-mounted units protect operators in soldering, laser, 3D printing and dental applications.
