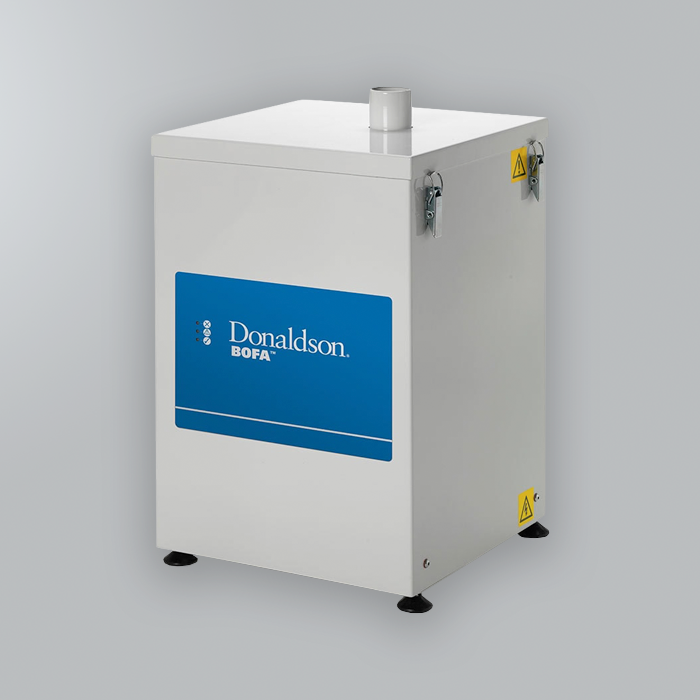

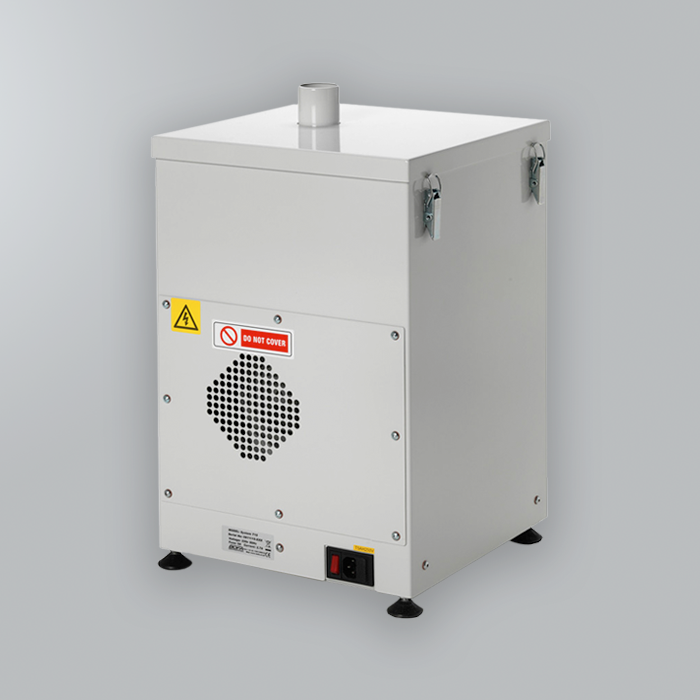

T15 Multiple Tip Extraction System

For irons with tip extraction, the T15 serves up to 15 operators. For arms over the bench, the V200 covers one operator and the V250 two. Larger lines use the V600, V Oracle iQ or V 1000 iQ.

Tip extraction draws fume through a tube on the iron, millimetres from the joint. Arm extraction uses a flexible arm and nozzle over the work. Both capture at source, which COSHH requires; a window does not.

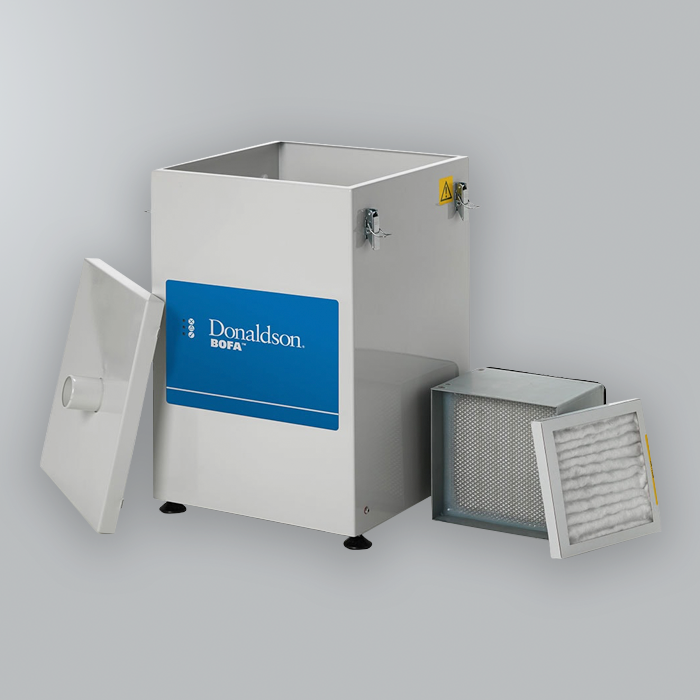

There is no set interval, because life depends on what and how much you extract. Change the pre-filter when the filter indicator calls for it and the combined HEPA/gas filter when the indicator or iQ display reports it. A fresh pre-filter protects the main filter.

One cartridge with two stages: a pleated glass-fibre HEPA section removing 99.97% of particles at 0.3 microns, and a treated activated-carbon section that absorbs gases and vapours. Laser and FumeCAB 1000 iQ versions reach 99.997%.

BOFA's high-capacity pre-filter, with a large pleated media area that captures the bulk of particulate before the main filter, extending its life and keeping airflow up.

Light use: AD Access or AD 350. Light to medium industrial: AD Nano. Industrial: AD Oracle iQ or SA iQ. Heavy duty: AD 500, 1000, 1500 or 2000 iQ. For a desktop laser the AD Base 1 or 2 doubles as the workstation.

No. PVC produces corrosive fume. BOFA's AD PVC iQ has coated internal surfaces and HCl and VOC sensors for exactly this job.

BOFA's Intelligent Operating System: real-time performance information for the operator, downloadable data for evaluation, accurate filter alerts and, on larger units, airflow held steady as filters fill.

They are built for the bench. The T15 and V600 have built-in silencing, and the AD Oracle SA iQ is rated at 60 dBA. Noise figures are on each product page.

Yes. We provide LEV examination and testing on all BOFA equipment to keep your extraction compliant with COSHH, which requires testing at least every 14 months.

Yes. We stock the full range, including genuine replacement filters and spares, from our base in Christchurch, Dorset.

ESD stay-put arms in 32, 50 and 75 mm, unit-mounted or bench-bracket, 1 m or 1.4 m, with nozzle, funnel, slot or plenum ends and an LED-lit option.
