BOFA V200 BENCH MOUNTED Single Arm High Volume Extraction Unit - FITTING KIT

V200 Single Arm High Volume Extraction Kit

Name: V200 Single Arm High Volume Extraction Kit
Brand: DonaldsonBOFA
SKU: 503-483
Price: 608.87 GBP
Availability: InStock

Authorised UK Distributor

SKU: 503-483

MPN: 1U30351593-1209-1

Description

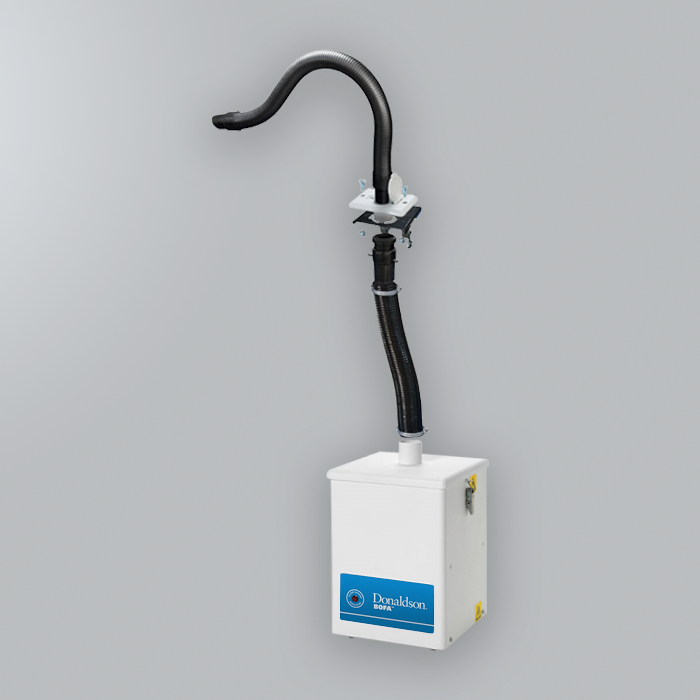

The BOFA V200 Solder Fume Extraction System is a portable, flexible solution designed to capture and filter harmful fumes produced during hand soldering in the electronics industry.

With its low noise level (<54 dBA) and powerful 99.97% HEPA filtration, this system is perfect for dynamic production environments that require minimal installation and easy relocation.

It comes with a 50mm Stay Put extraction arm and a comprehensive installation kit for effortless setup for one operator. The system is equipped with a combined HEPA/Gas filter to ensure effective removal of both particulates and gases.

The Granulated Carbon Gas Kit and Filter Blocked Indicator make maintenance straightforward, while its compact design (420 x 290 x 270 mm) ensures it fits into various factory layouts.

Specification:

V200 extraction unit

Cabinet construction: Powder coated mild steel
Airflow / Pressure: 90m(3) / 20mbar
Voltage: 230V
Noise level: < 54dBA (at typical operating speed)
Weight: 7kg
Duct size: 50mm,
Duct Run: 1.50 metres flexible hosing

Pre Filter (A1030102)

Media: Glass fibre paper
Construction: Pad
Efficiency: F7 (96% @ 2 microns)

Combined HEPA* / Gas(* High Efficiency Particle Air Filter) (A1030099)

Media: H13 Glass fibre paper
Construction: Maxi Pleat with webbing spacers
Efficiency: H13 (99.997% @ 0.3 microns)
Gas: Impregnated Activated Carbon

50mm Stay Put Arms with nozzle (A1020047)

Length: 790mm
Nozzle: 90° slant, 40mm diameter
Construction: Black carbon loaded compressed polystyrene (ESD)

Compatible with:

Product Features

Portable and Easy to Move: Minimal installation allows the unit to be relocated with the workbench during production layout changes.
Comprehensive Filtration: Includes 99.97% HEPA filtration and a combined HEPA/Gas filter for efficient removal of particulates and gases.
Low Noise Level: Operates quietly at <54 dBA, ideal for noise-sensitive environments.
Stay Put Extraction Arm: 50mm Stay Put Arm (790mm length) with a 90° slanted nozzle ensures precise fume capture.
Granulated Carbon Gas Kit: Provides enhanced filtration for gases and odours.
Efficient Pre-Filter: F7 glass fibre pre-filter (96% efficiency at 2 microns) for added particulate capture.
Compact Dimensions: 420 x 290 x 270 mm, designed to fit easily into various factory setups.
Convenient Maintenance: Filter Blocked Indicator for easy monitoring and maintenance.

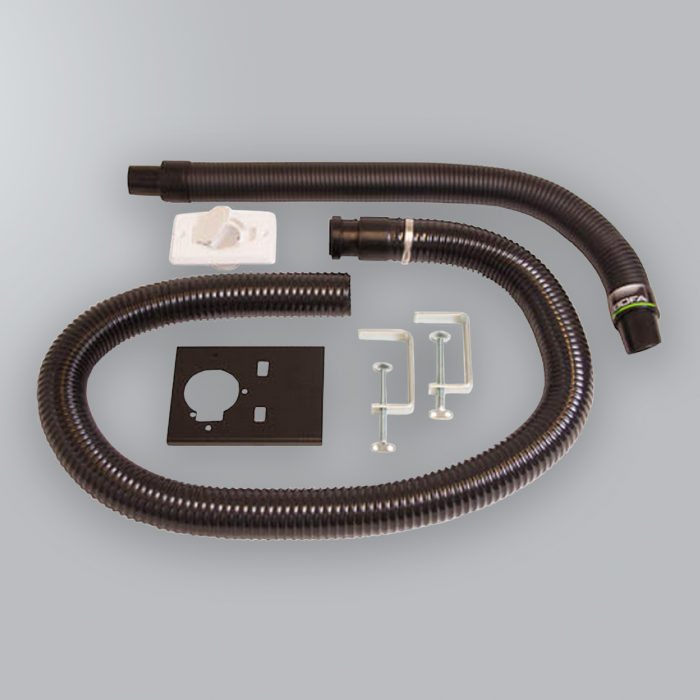

Product Contents

Combined HEPA/Gas Filter
Granulated carbon gas filter
Unique flip top flush sealing mounting plate
One 50mm ESD stay put extraction arm
Installation flex and table bracket

LEV Testing

SEE HERE for details of how we can help with LEV (Local Exhaust Ventilation) testing.

DOWNLOAD DATASHEETS

1. Technical Data Sheet

2. Information Sheet

PRICE PER ITEM

£608.87

Ex. VAT

Shipping calculated at checkout.

BUY 3+ GET 5% OFF

£578.43 Ex. VAT

1 IN STOCK - NEXT DAY DELIVERY AVAILABLE

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your back-ordered item/s will be delivered.

Frequently asked questions

Which BOFA extractor do I need for hand soldering?

For irons with tip extraction, the T15 serves up to 15 operators. For arms over the bench, the V200 covers one operator and the V250 two. Larger lines use the V600, V Oracle iQ or V 1000 iQ.

What is the difference between tip extraction and arm extraction?

Tip extraction draws fume through a tube on the iron, millimetres from the joint. Arm extraction uses a flexible arm and nozzle over the work. Both capture at source, which COSHH requires; a window does not.

How often should I change BOFA filters?

There is no set interval, because life depends on what and how much you extract. Change the pre-filter when the filter indicator calls for it and the combined HEPA/gas filter when the indicator or iQ display reports it. A fresh pre-filter protects the main filter.

What is a combined HEPA/gas filter?

One cartridge with two stages: a pleated glass-fibre HEPA section removing 99.97% of particles at 0.3 microns, and a treated activated-carbon section that absorbs gases and vapours. Laser and FumeCAB 1000 iQ versions reach 99.997%.

What is a DeepPleat DUO pre-filter?

BOFA's high-capacity pre-filter, with a large pleated media area that captures the bulk of particulate before the main filter, extending its life and keeping airflow up.

Which BOFA unit is right for a laser engraver?

Light use: AD Access or AD 350. Light to medium industrial: AD Nano. Industrial: AD Oracle iQ or SA iQ. Heavy duty: AD 500, 1000, 1500 or 2000 iQ. For a desktop laser the AD Base 1 or 2 doubles as the workstation.

Can I laser-cut PVC with a normal extractor?

No. PVC produces corrosive fume. BOFA's AD PVC iQ has coated internal surfaces and HCl and VOC sensors for exactly this job.

What does iQ mean on a BOFA unit?

BOFA's Intelligent Operating System: real-time performance information for the operator, downloadable data for evaluation, accurate filter alerts and, on larger units, airflow held steady as filters fill.

Are BOFA extractors noisy?

They are built for the bench. The T15 and V600 have built-in silencing, and the AD Oracle SA iQ is rated at 60 dBA. Noise figures are on each product page.

Does Grove Sales do LEV testing?

Yes. We provide LEV examination and testing on all BOFA equipment to keep your extraction compliant with COSHH, which requires testing at least every 14 months.

Is Grove Sales an authorised Donaldson BOFA distributor?

Yes. We stock the full range, including genuine replacement filters and spares, from our base in Christchurch, Dorset.

What arm sizes and ends are available?

ESD stay-put arms in 32, 50 and 75 mm, unit-mounted or bench-bracket, 1 m or 1.4 m, with nozzle, funnel, slot or plenum ends and an LED-lit option.

Shop all Donaldson BOFA

About Donaldson BOFA

Authorised UK Distributor

BOFA designs and builds fume and dust extraction systems in Dorset, now part of the Donaldson filtration group. Its portable and bench-mounted units protect operators in soldering, laser, 3D printing and dental applications.
