Name: Complete ESD Wrist Strap and Footwear Test Station.
Brand: GTEK
SKU: 106-106
Price: 123.75 GBP
Availability: InStock

Complete ESD Wrist Strap and Footwear Test Station.

SKU: 106-106

This Complete ESD Test Station is a wall-mounted unit designed for checking the continuity of fitted wrist straps, cords, ESD footwear, heel straps, and toe grounders. The kit includes the ESD W
READ MORE

PRICE PER ITEM

£123.75

Ex. VAT

Shipping calculated at checkout.

2 IN STOCK - NEXT DAY DELIVERY AVAILABLE

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

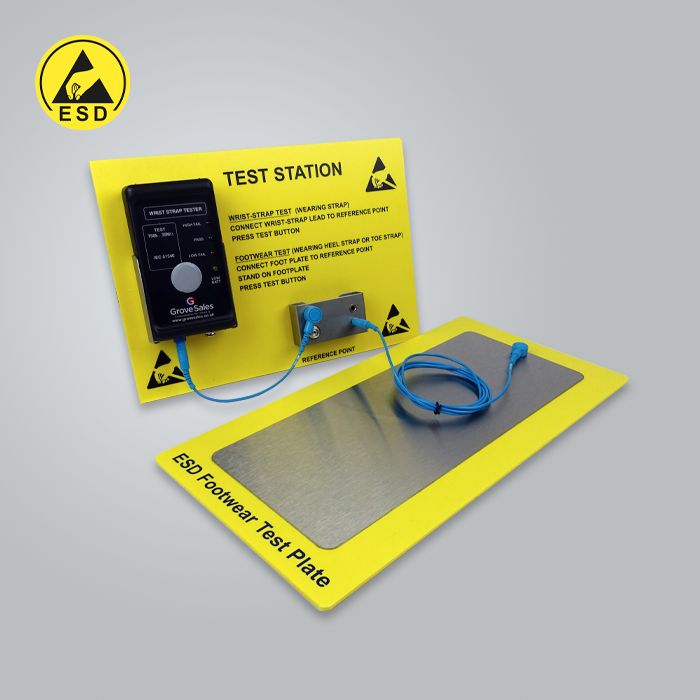

This Complete ESD Test Station is a wall-mounted unit designed for checking the continuity of fitted wrist straps, cords, ESD footwear, heel straps, and toe grounders.

The kit includes the ESD Wrist Strap Tester, ESD Footwear Test Plate, and the ESD Wall Mounted Bracket, providing a comprehensive solution for electrostatic discharge (ESD) testing.

The Wrist Strap Tester has a standard test range from 0.75 meg-ohm to 35 meg-ohm, with the option for other resistance ranges upon request. The tester uses a green light for a pass (indicating resistance within the acceptable range) and two red lights to signal either a high resistance fail or a low resistance fail. An audible buzzer alerts users in the event of a failure. The unit is powered by a 9-volt battery, and both the Wall Panel and Footplate are compact and easy to use, with the Wall Panel measuring 300 x 210mm and the Footplate measuring 395 x 200mm.

This easy-to-use system ensures quick and accurate ESD compliance testing for all types of safety equipment.

Complete ESD Test Station for testing wrist straps, footwear, and grounders
Includes ESD Wrist Strap Tester, ESD Footwear Test Plate, and ESD Wall Mounted Bracket
Standard resistance range of 0.75 meg-ohm to 35 meg-ohm (other ranges available)
Green light for pass and red lights for high resistance or low resistance fail
Audible buzzer for instant failure alerts
Powered by a 9-volt battery for portability
Wall panel size: 300 x 210mm; Footplate size: 395 x 200mm
Ideal for ESD compliance testing in labs, production lines, and controlled environments
