Replacement Nozzles

Green De-Solder Pump

SKU:

201-850

Our green, de-soldering tool (solder sucker) is a standard model, hand operated tool. The solder sucker is a professional and quality tool used to cleanly remove solder, providing easy joint disass
READ MORE
£15.80 Ex. VAT
BUY 10+ GET 5% OFF £15.01 Ex. VAT
Quantity
  • 163 In stock

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

YOU MAY ALSO LIKE
Replacement Nozzles (5 Pack)
Replacement Nozzles (5 Pack) £9.95 Ex. VAT
One-Step No-Clean Desoldering Braid
One-Step No-Clean Desoldering Braid £4.70 Ex. VAT
One-Step LEAD FREE No-Clean Desoldering Braid
One-Step LEAD FREE No-Clean Desoldering Braid £4.55 Ex. VAT
Total: £0.00 Ex. VAT
Pickup available at Grove Sales Ltd

Green De-Solder Pump

£15.80
Green De-Solder Pump

Default Title

  • Grove Sales Ltd

    Pickup available, call to arrange a suitable date and time

    Unit 3 Beaver Industrial Estate, 8 Airfield Road
    Christchurch BH23 3TG
    United Kingdom

    +441202588900
Replacement Nozzles

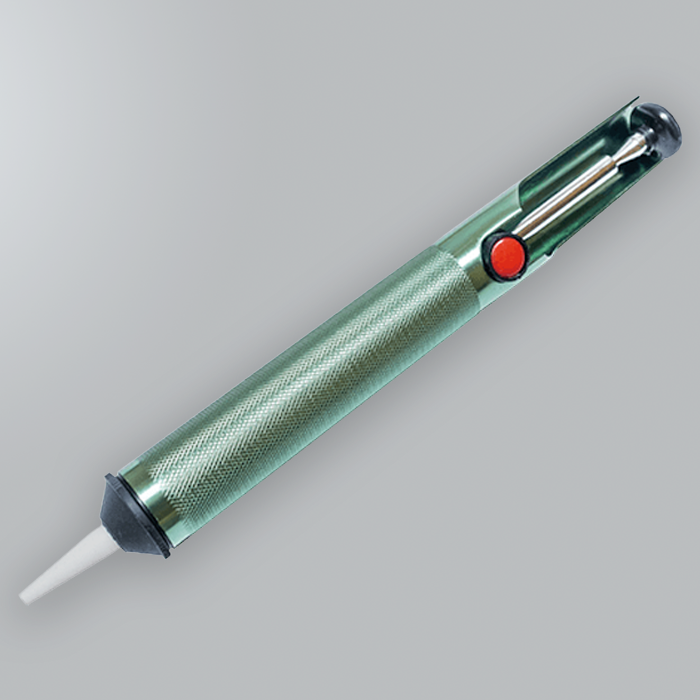

Our green, de-soldering tool (solder sucker) is a standard model, hand operated tool. The solder sucker is a professional and quality tool used to cleanly remove solder, providing easy joint disassembly.

This pump assists you in removing solder debris by sucking it up via a spring-loaded piston, released by a push button and re-primed by a plunger. Extraction springs are located outside the vacuum chamber and this helps to prevent the solder sticking, and prolongs the life of the solder sucker. It has a PTFE nozzle and the main body of the desoldering gun is made from aluminium.

Replacement Nozzles Available - CLICK HERE



 Safety Warning.

• This Solder sucker desoldering gun should NOT be used on LIVE electrical circuits, it provides no protection from electric shock.
• Always protects your eyes when using the desoldering gun with industry approved eye protection to standards CE, OHSA and ANSI.

 Features and Benefits.

• Hand operated.
• Provides efficient solder removal and joint dis-assembly.
• Fast sucking action via the spring loaded piston.
• Extraction springs are outside of the vacuum chamber.
• Prevents solder sticking.
• PTFE Micro Nozzle (polytetrafluoroethylene)
• Main body made from aluminium.

  What is PTFE?

Insulates.

Resistant to wear.

Less friction.

Used with high temperatures.

Chemically resistant.

(PTFE – Polytetrafluoroethylene. A very stable material used in various industries and applications. A stable and hard wearing material.)

 How to use a Solder Sucker De-soldering Gun Pump.

• Heat up the solder to be removed with your soldering iron.
• Press the plunger of the solder sucker.
• Place the desoldering pump against the solder to be removed.
• The piston will then suck up the solder to be removed.
• Repeat all of the above as many times as required.
• When finished remove and dispose of the waste solder from the pump.

 Solder Sucker De-soldering Gun Dimensions.

• Length 190 mm.
• Barrel diameter 20 mm.
• Nozzle length 20 mm.
• Tip outside dimeter 3 mm.
• Tip inside diameter 1.5 mm.
• Weight 56 g.
