Name: MMP 15 Component Cutter
Brand: Piergiacomi
SKU: GT-MMP-15
Price: 1138.42 GBP
Availability: InStock

MMP 15 Component Cutter

The MMP 15 is a pneumatic component cutter designed for precise end cutting of loose radial components like transistors, LEDs, capacitors, resistors, and more. It is equipped with pedal activatio
READ MORE

BUY 5+ SAVE 5%

Stock	Item	SKU	1-4	5+	Qty	Total
0	MMP 15 Component Cutter	GT-MMP-15	£1,138.42 Ex. VAT	£1,081.50 Ex. VAT		£0.00 Ex. VAT
0	MMP 15 Extra Plate (2mm, 2.5mm and 3mm cutting length)	GT-MMP15-EP	£275.12 Ex. VAT	£261.36 Ex. VAT		£0.00 Ex. VAT

Pickup available at Grove Sales Ltd

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

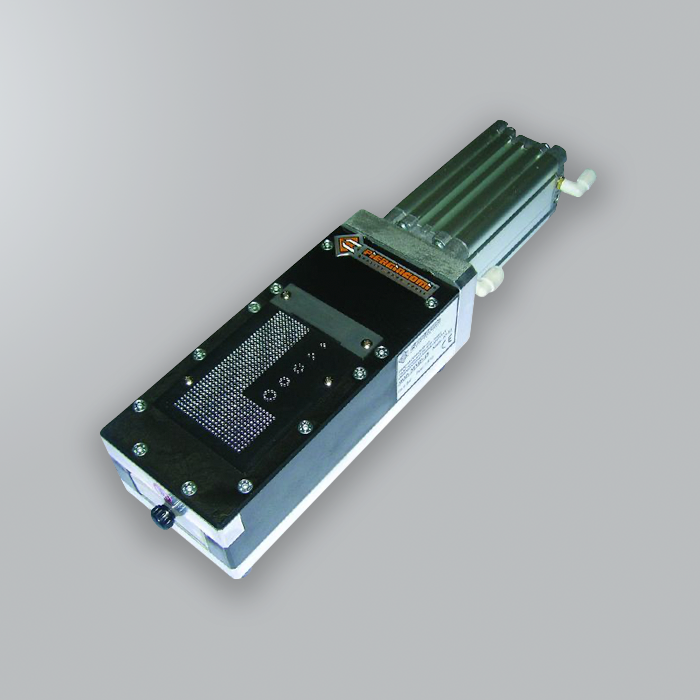

The MMP 15 is a pneumatic component cutter designed for precise end cutting of loose radial components like transistors, LEDs, capacitors, resistors, and more.

It is equipped with pedal activation, making it easy to use, and is capable of cutting up to 3000 components per hour, providing high-speed performance for busy production environments.

The cutting area measures 51x93mm, offering a larger space for processing components compared to smaller cutters. The standard cutting height is 3mm, but can be increased to 4.5mm by using the additional plate (1.5mm high).

An optional multi-height plate allows for further customization, supporting 3mm, 2.5mm, and 2mm / 2.54mm pitch cutting heights on a single plate. This versatility ensures the cutter can handle a wide range of component sizes.

With the capability to cut up to 60 leads at once and accommodate components with diameters ranging from 0.3mm to 1.3mm, the MMP 15 is an efficient and adaptable tool for high-volume cutting.

It features a 6 bar supply pressure with a 100 Nl/min consumption, and it weighs 7.8kg, making it portable yet robust.

On request we produce custom plates.

Pneumatic Activation: Pedal-operated for easy and quick operation
Cutting Capacity: Up to 3000 components per hour
Cutting Area: 51x93mm for larger component processing
Cutting Heights: 3mm standard (up to 4.5mm with extra mask)
Optional Multi-Height Plate: Allows for 3mm, 2.5mm, and 2mm / 2.54mm pitch
Maximum Leads Cut at Once: 60 leads
Component Size: For components with diameters from 0.3mm to 1.3mm
Supply Pressure: 6 bar, 100 Nl/min consumption
Dimensions: 38cm(L) x 10cm(W) x 7.8cm(H)
Weight: 7.8 kg for sturdy operation and easy portability
