Name: Vision EVO Cam System II - Full-HD (1080p) Digital Microscope ECS611
Brand: Vision
SKU: 507-251-1
Price: 4809.00 GBP
Availability: InStock

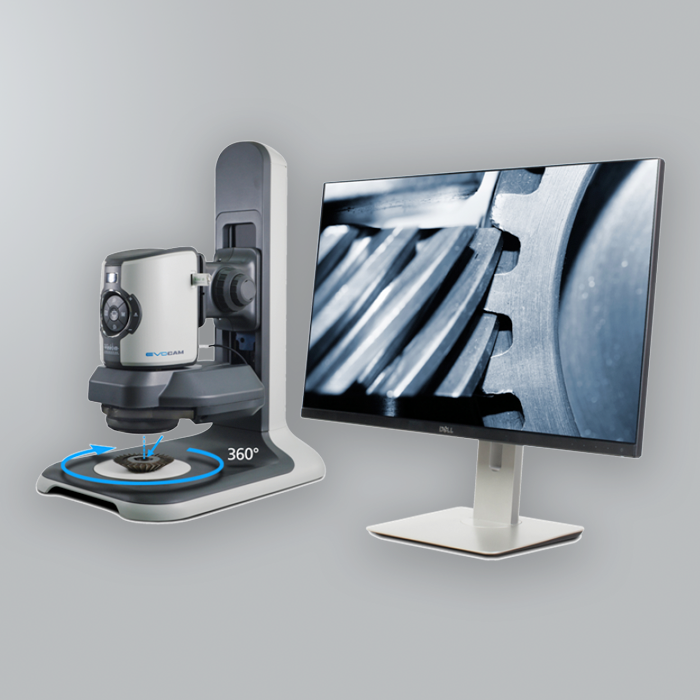

36360° Rotating Viewer attached to EVO CAM II

Vision EVO Cam System II - Full-HD (1080p) Digital Microscope ECS611

SKU: 507-251-1

Description

The Vision EVO Cam System II - Full-HD (1080p) Digital Microscope ECS611 is an advanced, high-performance microscope offering full-HD 1080p/60fps live video imaging for precise, detailed inspections.

With magnifications up to 300x and full autofocus, it provides ultra-sharp imaging, making it ideal for various inspection and analysis tasks.

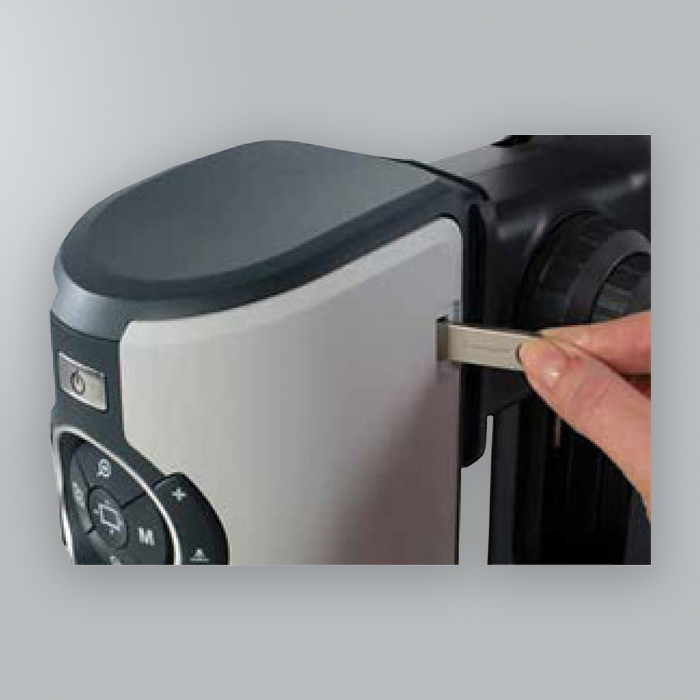

This stand-alone microscope allows for image capture directly to a USB memory stick, eliminating the need for a PC.

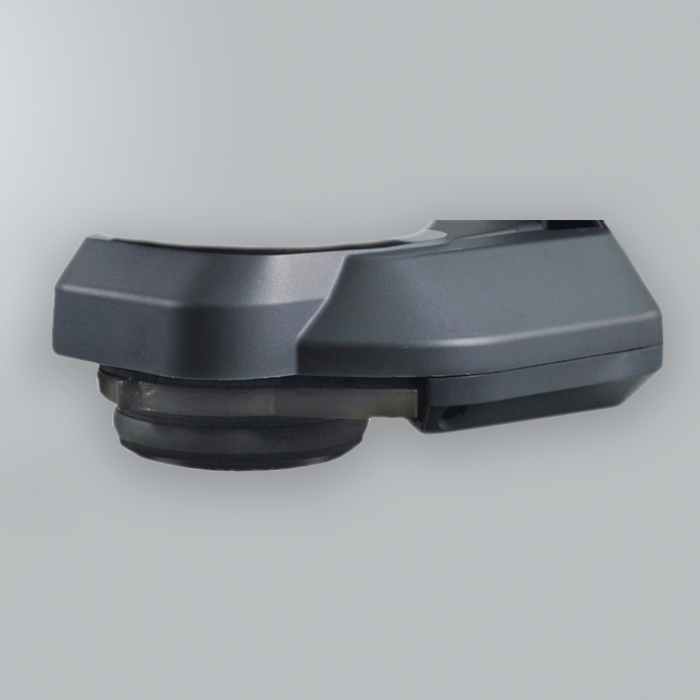

The addition of the 360° rotating viewer enhances flexibility, enabling full rotation around the subject (at an angle of 34°) for comprehensive observation.

This microscope is perfect for industrial, life science, and other precision applications.

MONITOR REQUIRED BUT NOT INCLUDED

Lens Info

Lens Options	Mag. Range 24" Monitor	Working Distance	Max Field of View
0.45x	2.3x - 68x	160mm	241 x 134mm
0.62x	3.1x - 93.7x	106mm	173 x 96mm
1.0x	5.0x - 151.2x	85mm	88 x 57mm

Specifications

Full-HD 1080p/60fps live video streaming for exceptional clarity and detail
Magnification up to 300x with full autofocus for crystal-clear imaging
Stand-alone design with direct image capture to USB memory stick (no PC required)
High-quality stands built for precision and stability
Ideal for industrial, mechanical, medical, and life science applications
360° rotating viewer for full-angle inspection, including a 34° tilt for base detail observation
Switch easily between rotating and conventional direct view for enhanced flexibility
Integrated 8-point LED ring light and objective lens for optimal illumination
Simple controls and user-friendly interface, minimising training requirements
Perfect for applications such as electronics, plastics, and mechanical components inspections

Product Contents

1 x EVO Cam II: Video Microscope. ECH005 (Including: Camera, power adapter, mains power cable, USB stick, user guide and lens cloth)

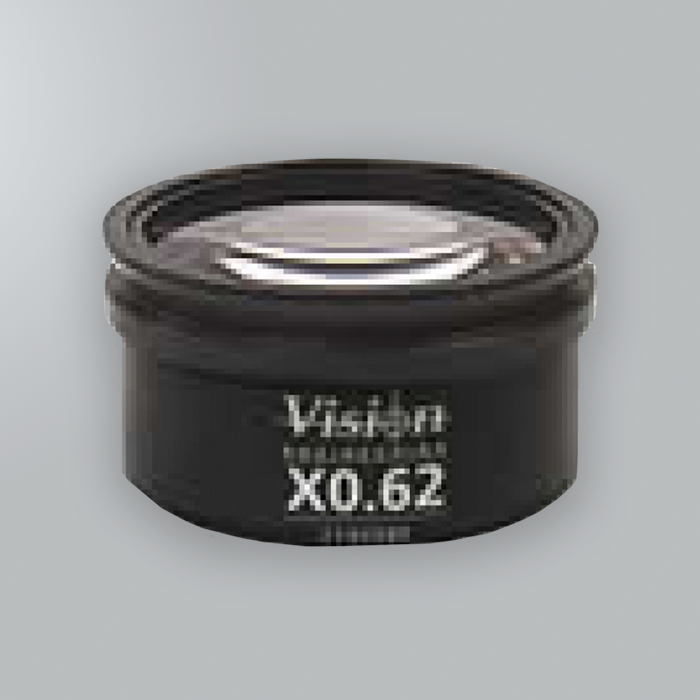

1 x 0.62X Objective Mk II: High performance lens - for high contrast and resolution at high magnification. Working Distance 128mm. ECL002

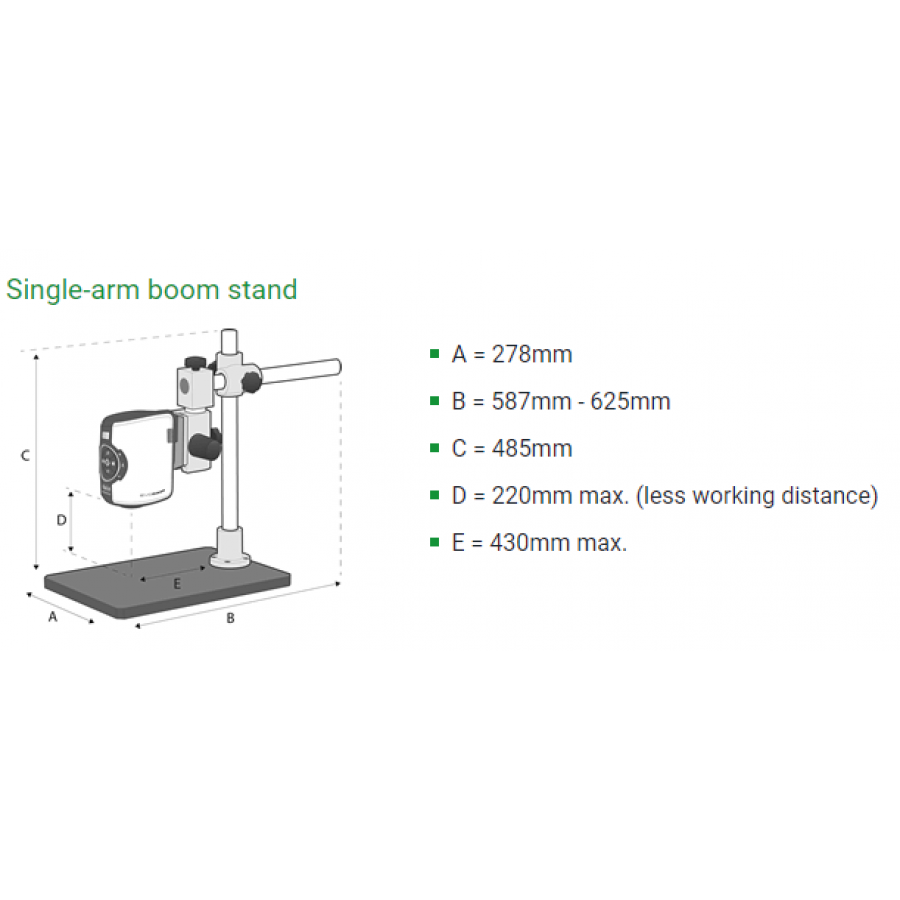

1 x Boom stand with built-in focus control.S206
1 x Interface plate for EVO Cam. EVB090
Stunning full-HD 1080p / 60fps live video
Large 30:1 optical zoom with magnification up to 300x
The 360° rotating viewer is an optional extra and is not included with this system.

DOWNLOAD DATASHEETS

1. Information Sheet
