Name: Vision Lynx EVO - Low-profile ErgoStand + 360° viewer EVO503
Brand: Vision
SKU: 507-262
Price: 10337.8 GBP
Availability: InStock

Vision Lynx EVO - Low-profile ErgoStand + 360° viewer EVO503

SKU: 507-262

The Vision Lynx EVO with the Low-profile ErgoStand + 360° Viewer EVO503 is a highly advanced, eyepiece-less stereo microscope, designed to provide outstanding optical performance and ergonomics for
READ MORE

PRICE PER ITEM

£10,337.80

Ex. VAT

Shipping calculated at checkout.

0 IN STOCK

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

Pickup available at Grove Sales Ltd

Vision Lynx EVO - Low-profile ErgoStand + 360° viewer EVO503

£10,337.80

The Vision Lynx EVO with the Low-profile ErgoStand + 360° Viewer EVO503 is a highly advanced, eyepiece-less stereo microscope, designed to provide outstanding optical performance and ergonomics for precision tasks requiring high-resolution 3D stereo viewing.

It incorporates Dynascope® eyepiece-less technology that allows natural movement of the head and eyes, ensuring fatigue-free operation and increasing productivity.

This model offers a magnification range of 6x to 60x, with the ability to extend up to 240x with additional lenses.

The 360° rotating viewer is an exceptional feature, providing the ability to inspect subjects from every angle, which is especially useful for components with intricate or vertical features.

For the Operator: Stunning 3D imaging, enhanced comfort, and fatigue-free viewing with unrestricted head and eye movement.
For the Business: Improved work quality, increased productivity, reduced strain-related injuries, and better adaptability for extended working hours or shift work.

Magnification Range: 6x – 60x standard, extendable to 240x with objective lenses
Dynascope® Eyepiece-less Technology: Fatigue-free viewing and ergonomics with increased head and eye freedom

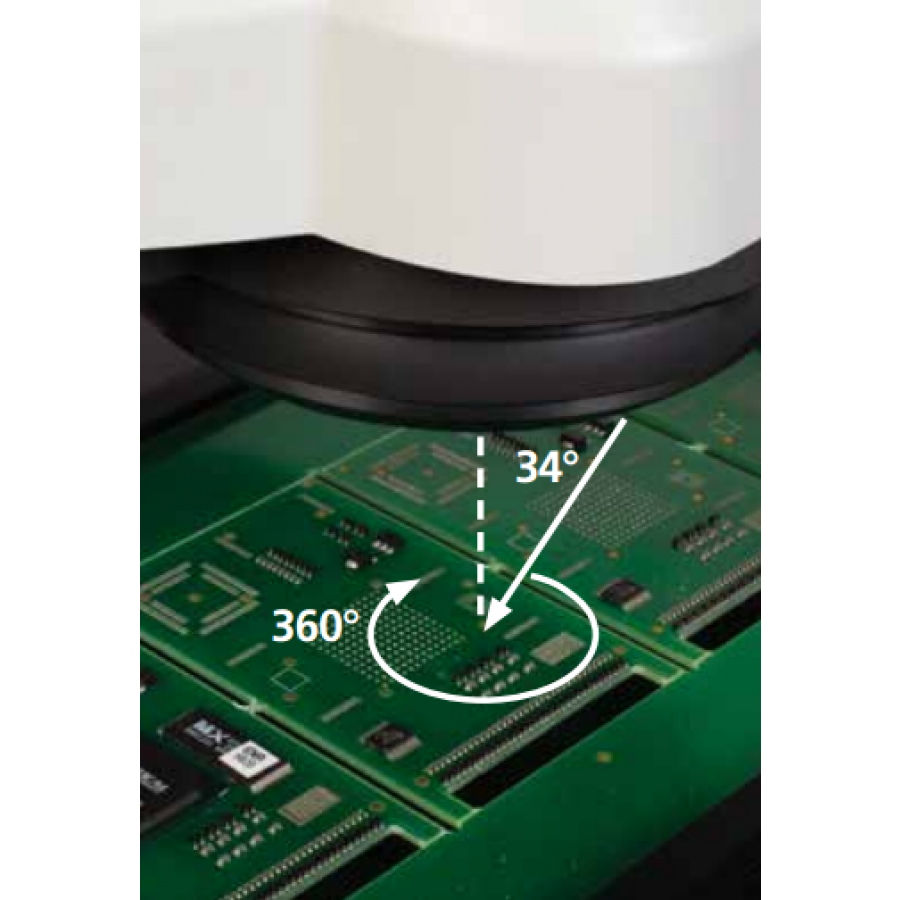

360° Rotating Viewer: Provides complete rotation for enhanced inspection, with a 34° tilt for easy observation of vertical components
Superior Ergonomics: Prevents strain-related injuries, supports natural body posture, and improves operator comfort
Iris Control & Focus Adjustments: Allows precise control over the depth of field and contrast, with coarse and fine focusing
Zoom Ratio: 10:1 zoom ratio, with indexing for magnification consistency
Integrated 8-point LED Ringlight: Provides shadow-free illumination for clear viewing

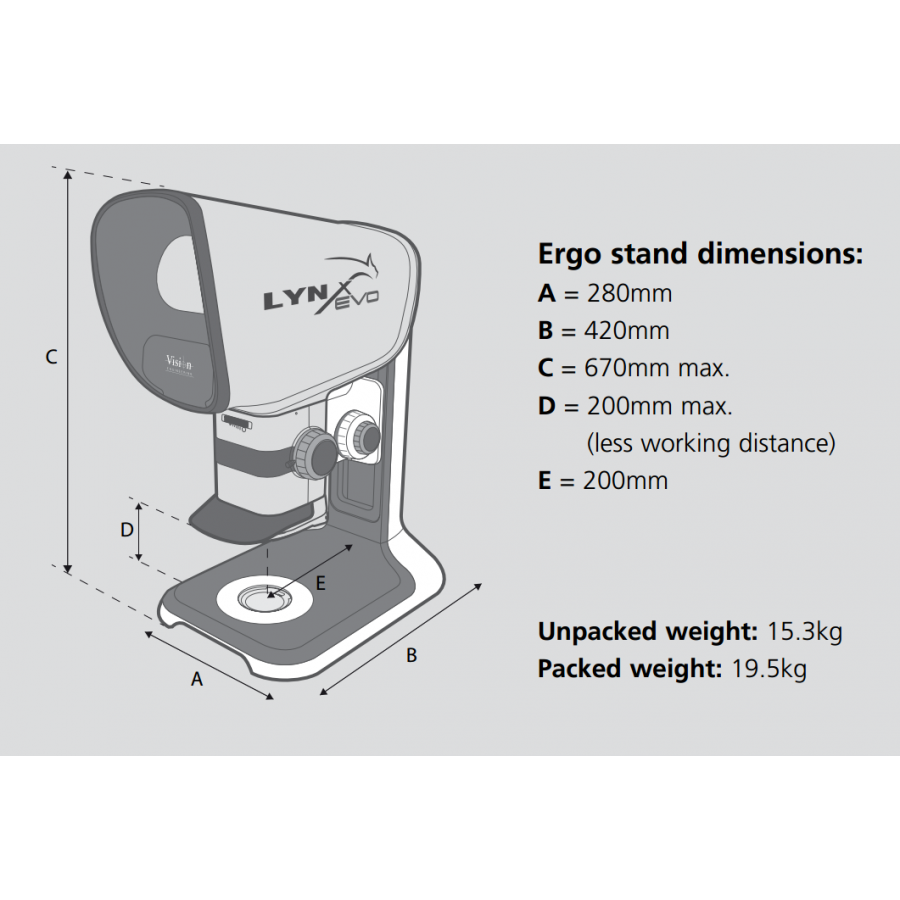

Ergonomic Stand: Low-profile ErgoStand and adjustable positioning for flexible use and comfort
Large Viewing Area: High-resolution 3D stereo imaging, offering more freedom of eye movement compared to traditional eyepiece-based microscopes
Applications: Ideal for a wide range of fields such as electronics, mechanical, medical, and plastics industries

Complete System consists of items detailed below:

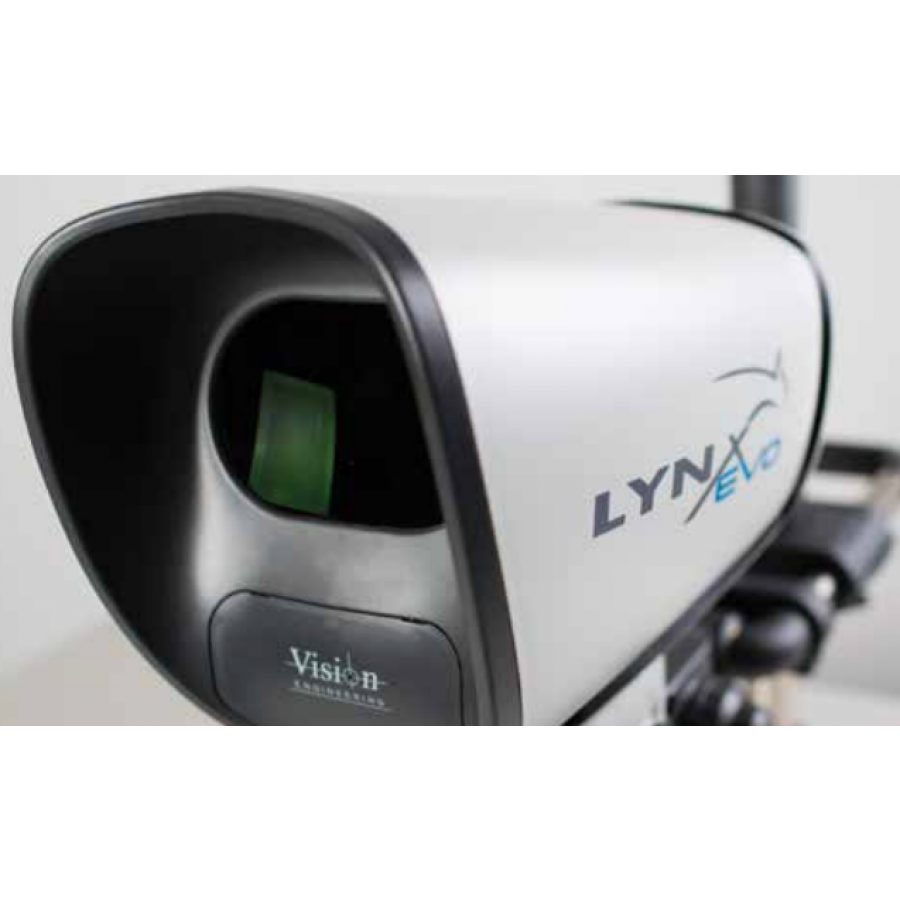

1 x Lynx EVO head : Ergonomic wide-field stereo microscope head.EVH001 (Including: Viewing hood for Lynx Evo head, head to ring-light power cable, dust cover & lens cloth)
1 x Lynx EVO zoom : 10:1 high performance zoom for Lynx EVO.EVZ040
1 x EVO Ergo Stand : Low-profile ErgStand with built-in coarse & fine focus control.EVB010

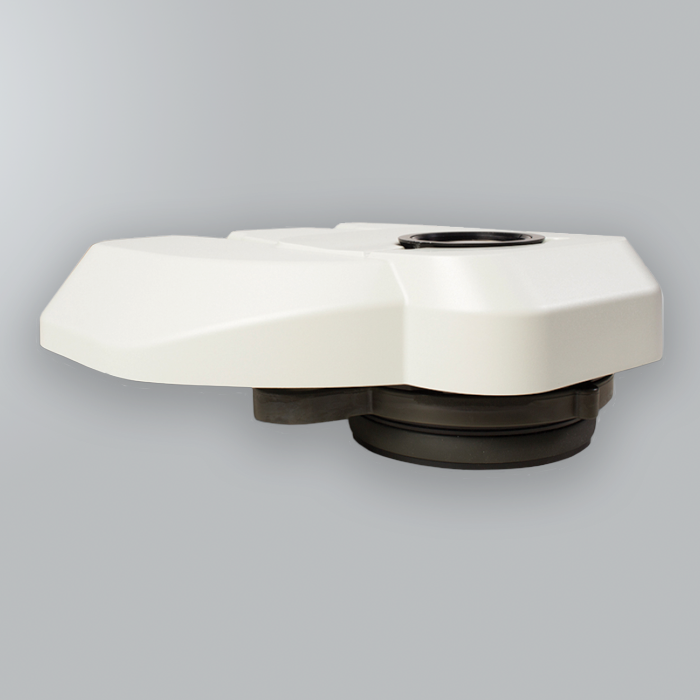

1 x Lynx EVO 360° rotating viewer : 360° rotating optical viewer providing direct and 34° oblique view of subject.EVR061
1 x Power unit (standard) : Connects to one incident illumination unit.EVP070
