Weller WXD 2020 Rework Station for use with compressed air SET

Weller WXD 2020 Rework Station for use with compressed air SET

SKU: GW-WXD2020

MPN: T0053429399N

The Weller WXD 2020 Rework Station is an advanced soldering and desoldering solution designed for professional applications, featuring 2 channels with 200W (255W) total power output. This station
READ MORE

PRICE PER ITEM

£1,445.64

Ex. VAT

Shipping calculated at checkout.

BUY 3+ GET 5% OFF

£1,373.36 Ex. VAT

0 IN STOCK

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

THESE ITEMS ARE USUALLY BOUGHT TOGETHER

ADD TO BUNDLE, THEN

Weller WXD 2020 Rework Station for use with compressed air SET

£1,445.64

The Weller WXD 2020 Rework Station is an advanced soldering and desoldering solution designed for professional applications, featuring 2 channels with 200W (255W) total power output.

This station is perfect for high-precision rework on the latest electronic components in industrial settings. The WXDP 120 desoldering iron heats up in just 35 seconds, offering fast and reliable performance with a stand-by function for energy efficiency. Ideal for intricate repairs, this station allows users to save soldering and desoldering parameters directly on the iron, ensuring quick access to commonly used settings.

Equipped with an ESD safe design and USB interface, the WXD 2020 is highly flexible, offering firmware updates, parameter adjustments, and monitoring through a standard USB flash drive.

This Weller WXD 2020 Rework Station is a powerful and efficient tool for soldering and desoldering in industrial applications, offering quick heating times, high precision, and advanced features like USB interface for software updates and easy parameter management. Its ESD safe design and flexible bonding options make it an essential tool for professionals working with sensitive electronics.

CLICK HERE FOR XT Soldering Tips

NON STOCKED ITEM

2-channel power unit with 200W (255W) total power for simultaneous operation of soldering and desoldering tools.
WXDP 120 desoldering iron (120W, 24V) heats up in just 35 seconds, improving workflow efficiency.
XDS 1 nozzle for effective desoldering, compatible with the WXDP 120.
WXP 120 soldering iron with XT B standard soldering tip (chisel 2.4 x 0.8 mm) for precise soldering tasks.
Temperature control with a range of ±9°C (±17°F) accuracy and ±2°C (±4°F) stability for consistent performance.
Air consumption of 35 l/min with a max pressure of 0.7 bar for efficient desoldering.
USB interface for firmware updates, parameterisation, and monitoring, supporting all standard USB flash drives.
4 options for equipotential bonding via the 3.5mm switch: hard grounded, equipotential bonding, potential free, or soft grounded.
ESD safe to protect sensitive components during use.
Touch panel display: 74 x 38 mm with a resolution of 255 x 127 (128) dots and backlighting with 4 LEDs for clear visibility

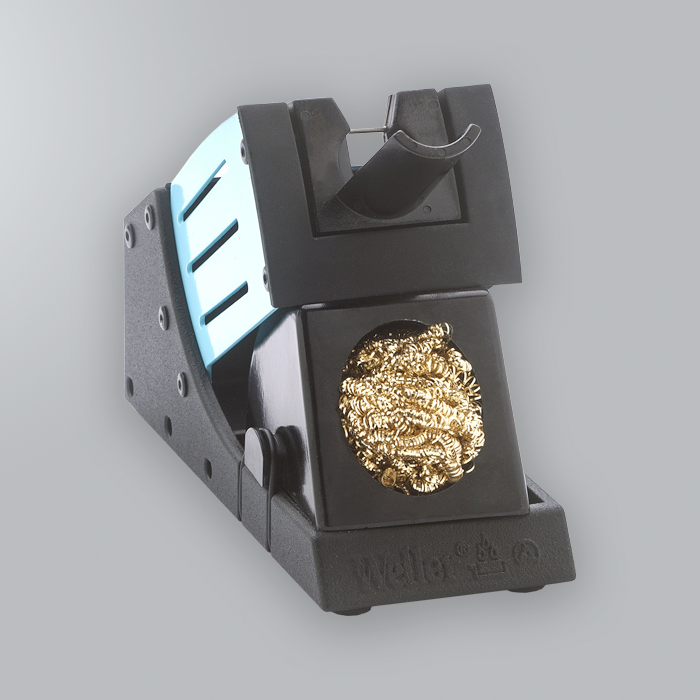

WHD 70 safety rest with brass wool for keeping tools clean and secure.
Dimensions: 170 x 151 x 130 mm (6.69 x 5.94 x 5.12 inches) and weighs 3.2 kg.
Fuse: T2 A for reliable protection.

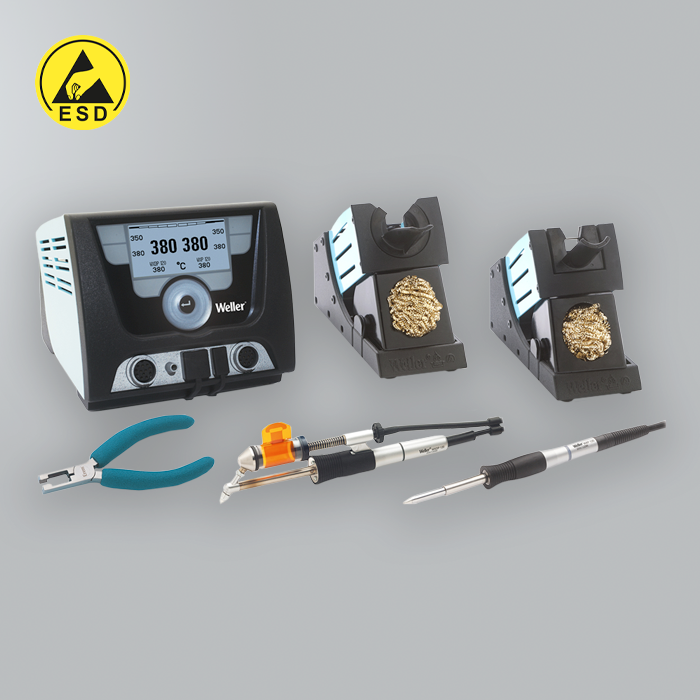

The set contains:

WXD 2 Power Unit
WXDP 120 Desoldering iron 120 W, 24 V
XDS 1 Nozzle
WDH 70 Safety rest with dry cleaner
WXP 120 Soldering iron
XT B Standard soldering tip, chisel 2,4 x 0,8 mm
WDH 10 Safety rest with dry cleaner
PDN Desoldering pliers
