DPF300 Depanelizer (PCB Nibbler)
DPF300 Depanelizer cutting head
DPF300 Depanelizer vacuum extractor
DPF300 Depanelizer connections
DPF300 Depanelizer cutting head view
DPF300 Depanelizer cutting board
DPF300 Depanelizer

DPF300 Depanelizer - PCB Nibbler

SKU:

601-250

MPN:

DPF-300

The DPF300 is a manual depaneling system is designed to solve the needs of depanelizing (PCB Nibbler) small PCB's, FR4 type materials. It can also be used on aluminium substrate PCB's. ESD table w
READ MORE
DOWNLOAD INFORMATION DATASHEETS

1. Information Sheet

£5,818.42 Ex. VAT
Quantity
  • buy Low stock

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

YOU MAY ALSO LIKE
DPF Suction Pipe Ø12 x 1M
DPF Suction Pipe Ø12 x 1M £10.53 Ex. VAT
ESD Rubber Tube
ESD Rubber Tube £15.79 Ex. VAT
Inox Vacuum Pipe
Inox Vacuum Pipe £10.53 Ex. VAT
Total: £0.00 Ex. VAT
Pickup available at Grove Sales Ltd

DPF300 Depanelizer - PCB Nibbler

£5,818.42
DPF300 Depanelizer - PCB Nibbler

Default Title

  • Grove Sales Ltd

    Pickup available, call to arrange a suitable date and time

    Unit 3 Beaver Industrial Estate, 8 Airfield Road
    Christchurch BH23 3TG
    United Kingdom

    +441202588900
DPF300 Depanelizer (PCB Nibbler)
DPF300 Depanelizer cutting head
DPF300 Depanelizer vacuum extractor
DPF300 Depanelizer connections
DPF300 Depanelizer cutting head view
DPF300 Depanelizer cutting board
DPF300 Depanelizer

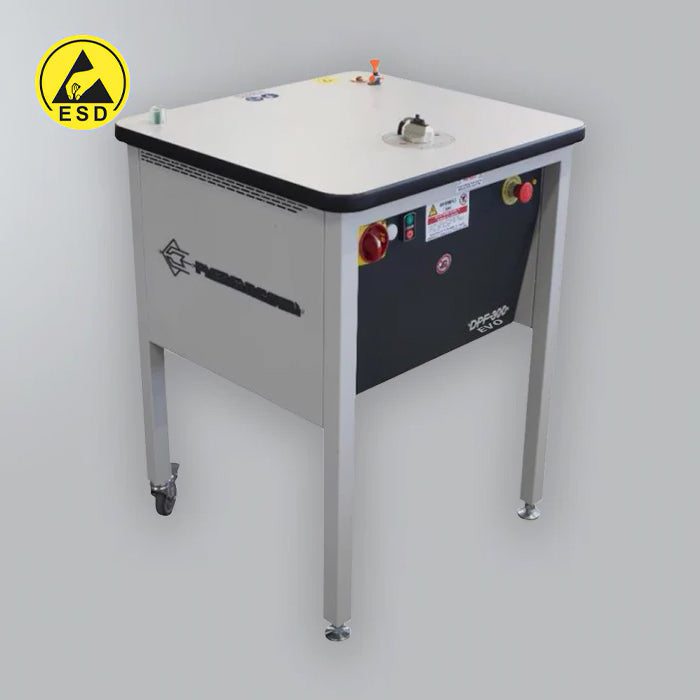

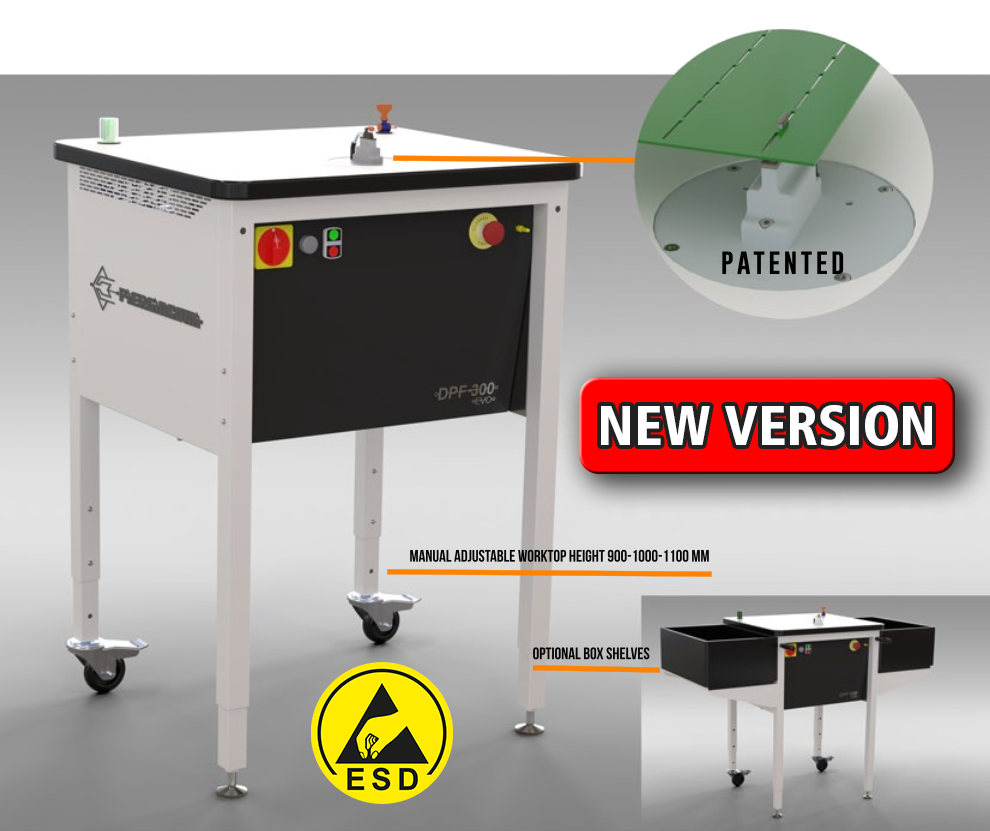

The DPF300 is a manual depaneling system is designed to solve the needs of depanelizing (PCB Nibbler) small PCB's, FR4 type materials. It can also be used on aluminium substrate PCB's.

  1. ESD table with EPB 90°
  2. ESD zinc coated steel frontal feet and rear turning wheels with brake Ø80.
  3. Easy Change PCB guides and milling bits for different routed widths.
  4. Designed to solve problems due to stress, break or tearing out of PCB’s fibres that often occurs using standard blades or manual tools
  5. The vacuum system allows you to place the system easily and quickly in any working area, without mess.



Interchangeable guide in hardened and tempered steel. Standard thickness: 1.0 - 3.0mm (SEE MORE)

Milling cutters for hard metal with specific geometry for FR4, CE and M. Standard diameters: 1.0 - 3.0mm (SEE MORE)

Milling cutters for Aluminium. Standard diameters: 1.0 - 3.0mm (SEE MORE)

Other spares are available here (SEE MORE)

  • Electrical micro spindle speed: max 24000 rpm.
  • Vibrations: < 2,5 m/s2 - Acoustic pressure level : 80db (A), (+/-3db) measured at operator’s site
  • Dimensions : 64x 70x 95(H) cm - Weight: 73 kg
  • Voltage: 230V/50Hz - power: 0.90Kw
  • Depression: 28 kPa (-280 mBar)
  • Max PCB’s thickness: max 4.0mm
  • Slot length (L): min. 11mm
  • Slot width (V): for a standard guide 1.0 - 3.0mm (tolerance 0 / - 0.02 mm)
  • Isthmus distance from components (C): min. 1 mm - PCB materials: FR4 – CEM – ALUMINIUM (for aluminium special milling cutters are needed)
  • CE Marked
