Name: DPF300 Guide 5mm Short
Brand: Piergiacomi
SKU: 601-111-10
Price: 184.21 GBP
Availability: InStock

DPF300 Guide 5mm Short

The DPF-300 5mm SHORT Guide Plate is a crucial accessory for the DPF-300 PCB depaneling system. The main feature of DPF-300 is the INTERCHANGEABLE GUIDE designed by Piergiacomi. Designed with
READ MORE

Stock	Size	SKU	Price	Total
0	1.0 mm	601-111-10	£184.21 Ex. VAT	£0.00 Ex. VAT
0	1.2 mm	601-111-12	£184.21 Ex. VAT	£0.00 Ex. VAT
0	1.3 mm	601-111-13	£184.21 Ex. VAT	£0.00 Ex. VAT
0	1.5 mm	601-111-15	£184.21 Ex. VAT	£0.00 Ex. VAT
1	1.6 mm	601-111-16	£184.21 Ex. VAT	£0.00 Ex. VAT
0	1.7 mm	601-111-17	£184.21 Ex. VAT	£0.00 Ex. VAT
1	1.8 mm	601-111-18	£184.21 Ex. VAT	£0.00 Ex. VAT
0	1.9 mm	601-111-19	£184.21 Ex. VAT	£0.00 Ex. VAT
0	2.0 mm	601-111-20	£184.21 Ex. VAT	£0.00 Ex. VAT
0	2.1 mm	601-111-21	£184.21 Ex. VAT	£0.00 Ex. VAT
0	2.2 mm	601-111-22	£184.21 Ex. VAT	£0.00 Ex. VAT
0	2.3 mm	601-111-23	£184.21 Ex. VAT	£0.00 Ex. VAT
0	2.4 mm	601-111-24	£184.21 Ex. VAT	£0.00 Ex. VAT
0	2.5 mm	601-111-25	£184.21 Ex. VAT	£0.00 Ex. VAT
0	3.0 mm	601-111-30	£184.21 Ex. VAT	£0.00 Ex. VAT

Pickup available at Grove Sales Ltd

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

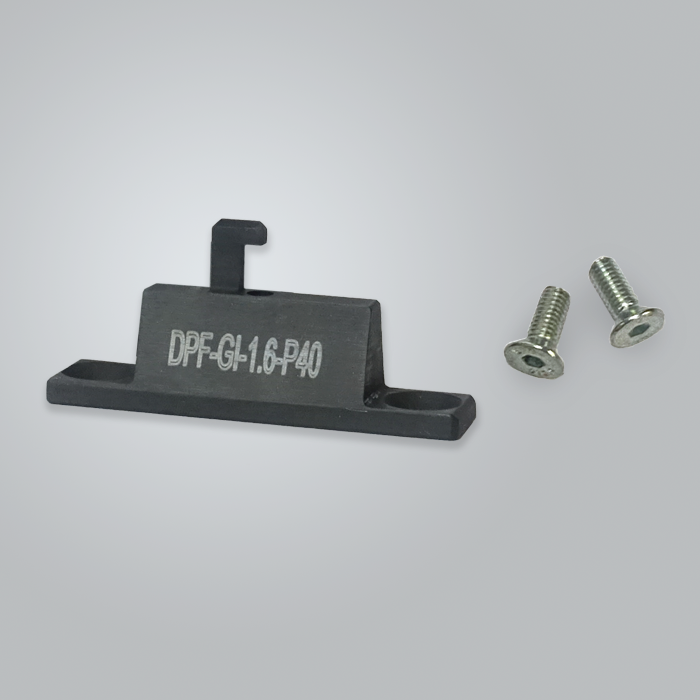

The DPF-300 5mm SHORT Guide Plate is a crucial accessory for the DPF-300 PCB depaneling system.

The main feature of DPF-300 is the INTERCHANGEABLE GUIDE designed by Piergiacomi.

Designed with safety and precision in mind, this interchangeable guide plate helps operators accurately place and pull the circuit board during the depaneling process. Its unique shape protects the circuit from damage, even if the guide is inserted incorrectly, ensuring that no harm comes to the assembled board.

Crafted from hardened and tempered steel, the guide plate is durable and long-lasting. It works seamlessly with milling bits for hard metal, specifically designed for FR4, CE, and M materials.

The guide plate and milling bits are matched pairs, ensuring precision and compatibility. A separate guide plate for aluminium milling is also available.

Interchangeable guide plate for accurate PCB handling during depaneling
Special shape prevents damage to assembled circuits, even with incorrect insertion
Made from hardened and tempered steel for durability
Compatible with milling bits for FR4, CE, M materials (1.0 - 3.0mm diameters)
Available milling bits for aluminium (1.0 - 3.0mm diameters)
Guide plate and milling bits are matched and not interchangeable for precise operation
