Large - L Shaped Rack 25 Slots ESD

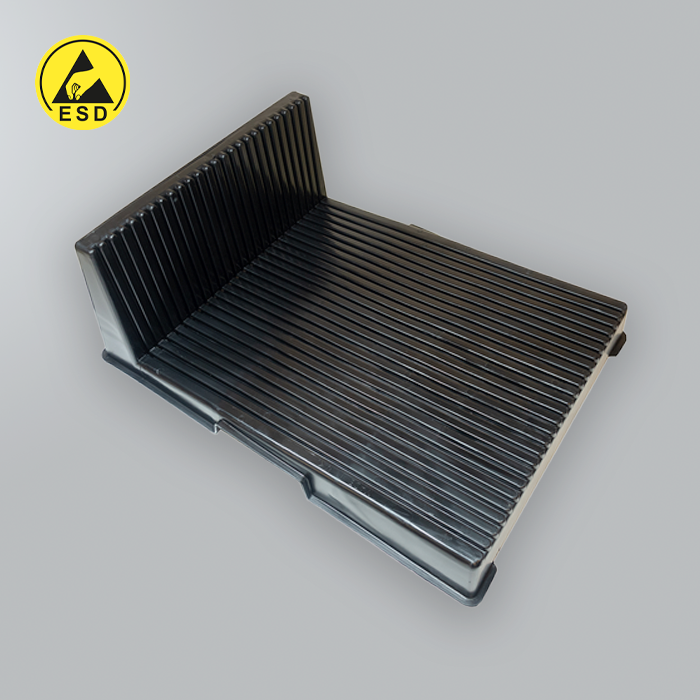

Large - L Shaped Rack 25 Slots ESD - Empty

Large - L Shaped Rack 25 Slots ESD

SKU:

109-100-2L

The PCB Conductive Rack offers a robust and space-saving solution for storing and handling printed circuit boards (PCBs) in ESD-controlled environments.   Moulded from black conductive polypropyle
READ MORE
£14.80 Ex. VAT
BUY 10+ GET 5% OFF £14.06 Ex. VAT
Quantity
  • 60 In stock

If stock level is 0 or not shown, you can still ORDER ONLINE and we will advise you by email when your item/s will be delivered.

YOU MAY ALSO LIKE
Small - L Shaped Rack 25 Slots ESD
Small - L Shaped Rack 25 Slots ESD £11.50 Ex. VAT
PCB Storage Rack ESD
PCB Storage Rack ESD £4.90 Ex. VAT
L Shaped PCB Rack 38 Slots ESD
L Shaped PCB Rack 38 Slots ESD £22.00 Ex. VAT
Economy Range - Large Toothbrush ESD
Economy Range - Large Toothbrush ESD £3.72 Ex. VAT
Total: £0.00 Ex. VAT
Pickup available at Grove Sales Ltd

Large - L Shaped Rack 25 Slots ESD

£14.80
Large - L Shaped Rack 25 Slots ESD

Default Title

  • Grove Sales Ltd

    Pickup available, call to arrange a suitable date and time

    Unit 3 Beaver Industrial Estate, 8 Airfield Road
    Christchurch BH23 3TG
    United Kingdom

    +441202588900
Large - L Shaped Rack 25 Slots ESD
Large - L Shaped Rack 25 Slots ESD - Empty

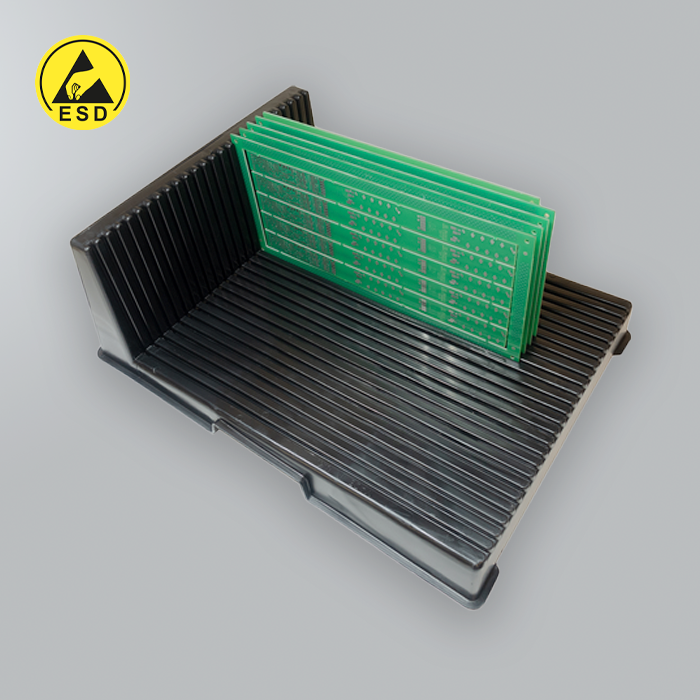

The PCB Conductive Rack offers a robust and space-saving solution for storing and handling printed circuit boards (PCBs) in ESD-controlled environments.



Moulded from black conductive polypropylene, these racks provide an effective way to store and transport PCBs while ensuring electrostatic discharge (ESD) protection.

With dimensions of 255mm width x 350mm length x 130mm height, these racks are designed to accommodate PCBs with a maximum board thickness of 2.4mm.

The stackable design allows for efficient storage, while the conductive material ensures a safe path to ground in static-controlled areas.

The electrical resistance of Rv: 103 to 105 Ω guarantees reliable ESD safety.

These racks can be used in conjunction with conductive picking bins, Euro-Fix containers, and for transport stacking.

Ideal for PCBs storage, handling, and transportation in electronics manufacturing or assembly areas, these racks are RoHS and REACH compliant and manufactured in the UK for high-quality standards.

Key Features:

  • Robust moulded PCB racks made from conductive polypropylene for ESD-safe storage of printed circuit boards (PCBs)
  • Stackable design for space-saving storage in assembly areas
  • Maximum board thickness: 2.4mm (dimensions: 255mm x 350mm x 130mm)
  • Electrical resistance: Rv: 103 to 105 Ω for effective ESD protection
  • Provides a conductive path to ground in static-controlled product areas
  • Ideal for use with conductive picking bins, Euro-Fix containers, and for transport stacking
  • Maximum operating temperature: 750°C
  • RoHS and REACH compliant, ensuring safety and environmental standards
  • Manufactured in the UK for premium quality and reliability
